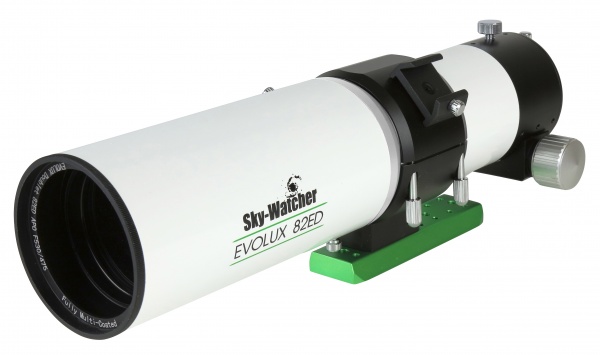

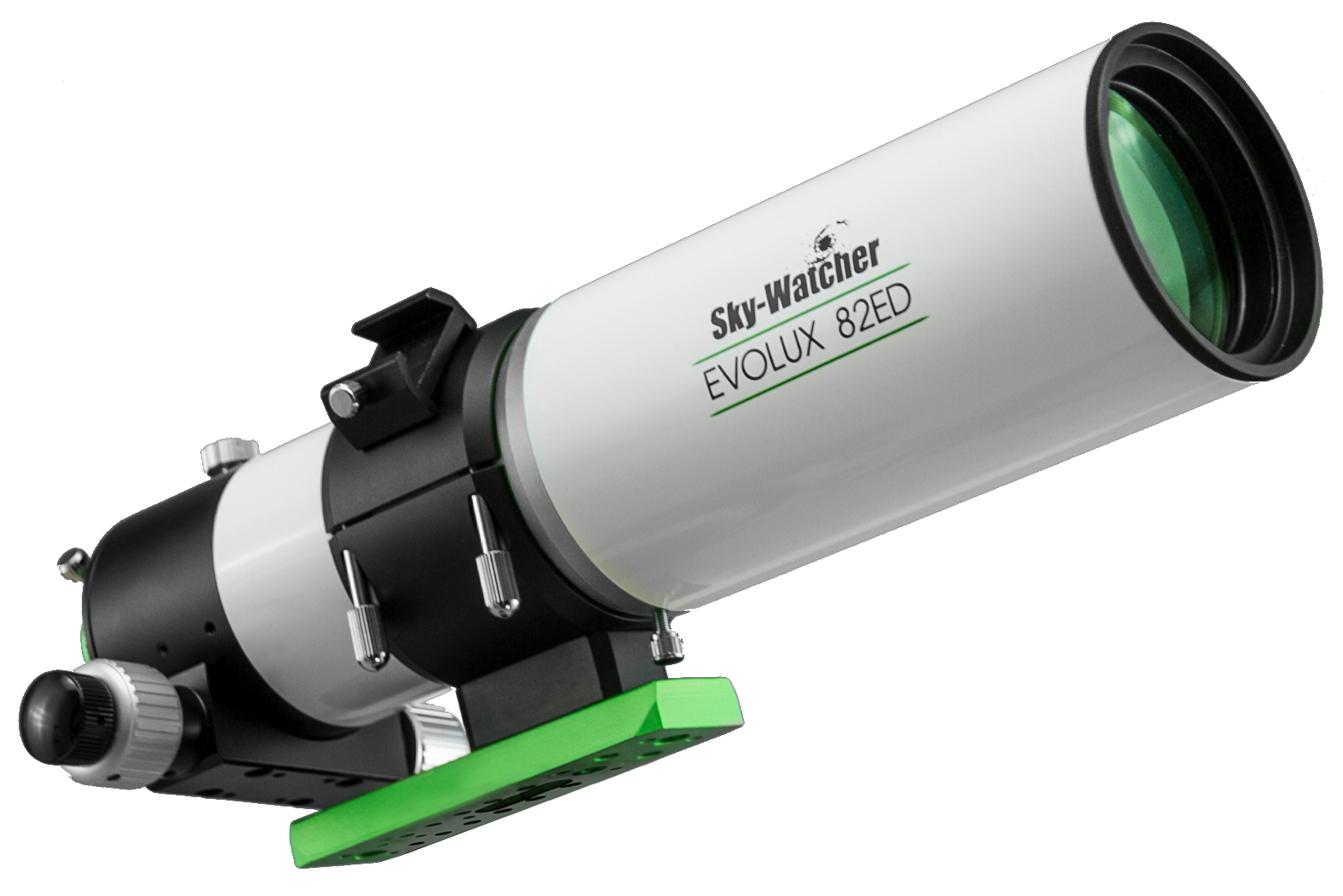

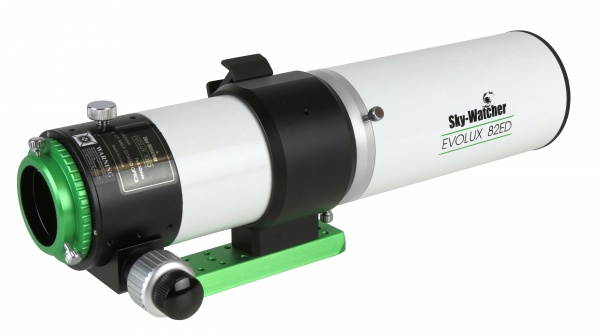

EVOLUX-82ED (OTA)

82mm (2.4) f/530 ED Apochromatic Refractor Telescope

EVOLUX-82ED (OTA)
  Zoom
EVOLUX-82ED (OTA)EVOLUX-82ED (OTA)EVOLUX-82ED (OTA)
EVOLUX-82ED (OTA)EVOLUX-82ED (OTA)
  • Sir Patrick Moore CBE FRS"I have used a great number of telescopes; some are good, some mediocre and some bad. To me the Sky-Watcher range of instruments are very good indeed, and suited to amateurs of all kinds – and they are not priced out of the market! Excellent value.
    Use them and enjoy them."
    Sir Patrick Moore CBE FRS (1923 to 2012)

ELEGANT DESIGN. NEXT-GENERATION PERFORMANCE

Building on the foundation of the popular Evostar line of doublet ED refractors, Sky-Watcher has developed the all-new Evolux ED series. Designed for the discerning astrophotographer looking for a lightweight scope that still packs a punch. Naturally, Evolux ED models offer excellent performance for visual use too. Evolux ED models have key upgrades in the optics and the mechanics, making them the perfect fit for a widefield grab-and-go setup. Evolux ED apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The doublet lens assembly utilises a proprietary combination of optically matched lenses, including one ED lens element, that delivers sharp stars with charcoal-black, contrast-rich skies, whilst virtually eliminating false colour. All lens elements feature Sky-Watcher's proprietary Metallic High-Transmission Coatings™ (MHTC™) which are the finest photon anti-rejection coatings in their class, optimising light throughput to up to 99.5%! The Evolux-82ED comes in a foam-lined aluminum case with a 2.4-inch 11:1 dual-speed rack-and-pinion focuser, 45mm dovetail bar, clamshell ring, and adjustable dew shield. An optional 0.9x two-element focal reducer/field flattener, which includes one ED lens element and adaptor/field rotator, is available separately, which when combined makes the Evolux-82ED into a four-lens optical system comprising two ED elements!



  • Optical Design: Apochromatic ED Doublet Refractor, Air Spaced, Fully Multi-Coated
  • Objective Lens Diameter: 82mm
  • Telescope Focal Length: 530mm (f/6.45)

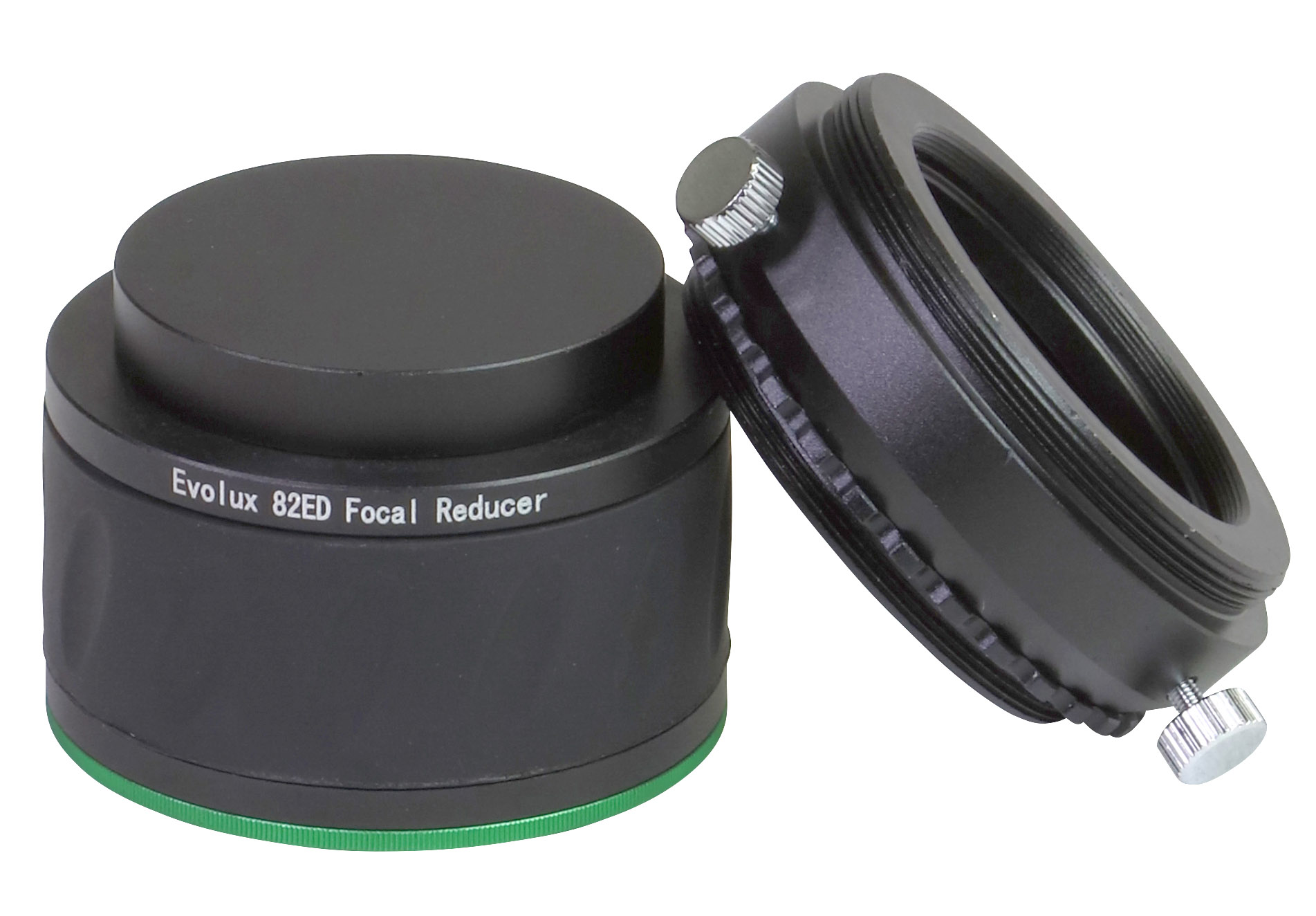

  • Focal Length with optional 0.9x Reducer/Flattener: 477mm (f/5.8)
  • Field of View with optional 0.9x Reducer/Flattener: 4.34°
  • Dual-Speed  2.4” Rack & Pinion Focuser with Indexed Drawtube
  • 2" (50.8mm) Visual Adaptor with Compression Ring
  • Clamshell Ring with 45mm Dovetail Mounting Bar
  • Supplied with two fitted finderscope shoes (Note: Photos only show one shoe)
  • Supplied without Star Diagonal, Finderscope or Eyepieces
  • Aluminium Carrying Case

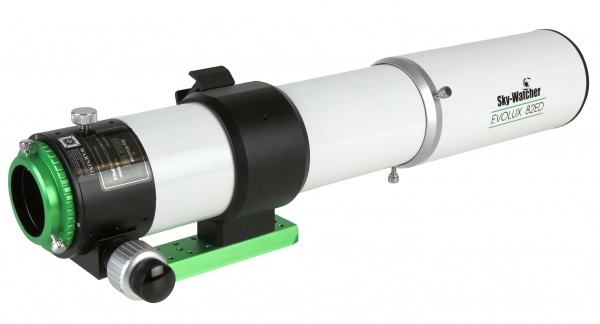

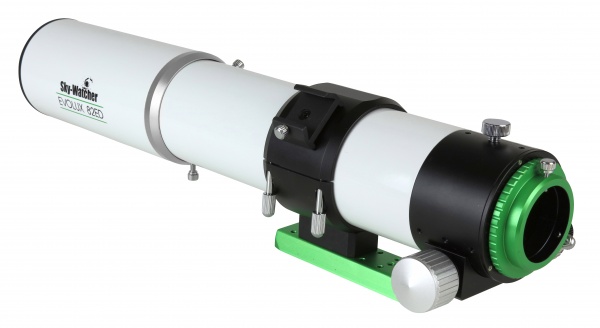

  • Tube Length Retracted/Extended: 425mm/580mm
  • OTA Weight: 2.92kg with supplied accessories
