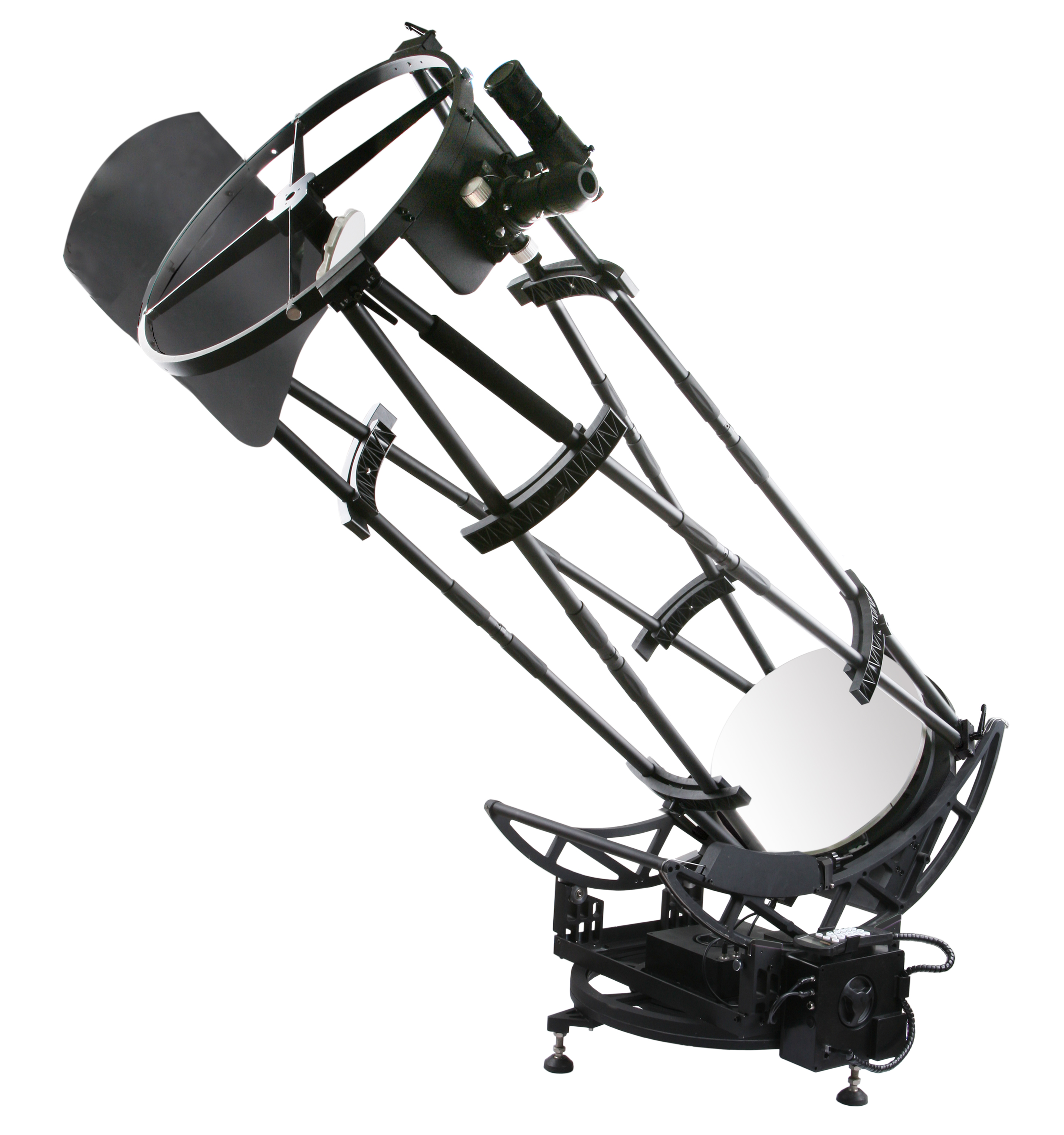

STARGATE-500P SYNSCAN

508MM (20”) F/4 PARABOLIC TRUSS TUBE COMPUTERISED GO-TO DOBSONIAN (LATEST IMPROVED VERSION)

STARGATE-500P SYNSCAN
  Zoom
SRP: £6,349.00

Product Code:  10256
Brand:  Sky-Watcher



Sky-Watcher


LATEST IMPROVED VERSION NOW SHIPPING!!

Sky-Watcher STARGATE Dobsonians with their huge light gathering capabilities provide the ultimate WOW factor experience for aficionados of visual astronomy, delivering outstanding performance on both Planetary and Deep-Sky objects.  The elegant and rigid all metal truss tube design is easily transportable when unassembled, and can be assembled and ready for use in about 20 minutes. The mount provides motorised operation in both Alt and Azimuth axes, and can slew the telescope automatically to, and track over 42,900 night sky objects from the Synscan handset's extensive computerised database. Features Freedom-Find™ Dual-Encoder technology, which also allows the telescope to be moved manually in either axis without losing it's alignment or positional information, giving the user enormous convenience and flexibility during observing sessions. Simply push the telescope close to the object and let the computer do the rest of the work!

  • Magnifications (with Eyepieces supplied): x71 & x200
  • Highest Practical Power (Potential): x1016
  • Diameter of Primary Mirror: 508mm
  • Telescope Focal Length: 2000mm (f/4)
  • Eyepieces Supplied: 10mm (1.25") & 28mm (2”)
  • Collimating Eyepiece (1.25")
  • Dual-Speed 2" Crayford Focuser with 1.25” adaptor
  • Parabolic Primary Mirror (Patented weight saving design) & secondary mirror with Radiant™ Aluminum Quartz (RAQ™) coating providing up to 94% reflectivity with optimal durability and long term performance
  • 136mm Secondary Mirror
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • Fabric Light Shroud
  • Alt-Azimuth Go-To mount (Metal construction)
  • Transmission: Worm + Timing Belt + 64 Micro-step/0.9º Stepper Motor Drive
  • Patented 'Freedom-Find' Dual-Encoder design allows manual movement without losing positional information
  • Pointing Accuracy: Up to 5 arc-minutes (RMS)
  • Gear Ratio: Azimuth 400, Altitude 1523.796
  • Synscan Computerised Handset with 42,900+ Object Database
  • Power requirement: DC11V/5A ~ 15V/3A
  • 61% more Light Gathering than 400mm
  • Overall Weight 90kg


PARABOLIC PRIMARY MIRRORS
Features High Quality Parabolic Primary Mirrors to eliminate spherical aberrations inherent in 'fast' focal lengh reflectors with spherical primary mirrors. The mirrors are parabolized to bring all the light rays to the same focal point to give sharp, constrasty images, which are full of detail.
