RAPIDE
WATERPROOF SPOTTING MONOCULAR & TRIPOD

This high-quality waterproof monocular is ideal for nature observations and target spotting. The ergonomically designed rubber body fits perfectly in the hand for quick focusing & comfortable operation. Can be mounted on the supplied extendable tabletop tripod or a full-size tripod. High index BaK-4 prisms ans fully multi-coated optcs provide excellent optical performance. Nitrogen filled for waterproof & fog-free performance. Twist-up rubber eyecup for spectacle wearers. Eye relief is 17.5mm and 14mm respecively (10x50 & 12x50 models). Colour/Material: Black Rubber

View full product info and print page

Email page to a friend

Standard Specification

Model	RAPIDE
Specification	10X50	12X50
Magnification	10x	12x
Object Lens Diameter	50mm	50mm
Field of view	5.8 degrees	4.7 degrees
Product Code	30201	30202
Price	£ 59.99	£ 59.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HELIOS FALCON ULTRA 20-60X80ED
DUAL-SPEED SPOTTING SCOPE

This premium, high-end spotting scope performs extremely well for all types of outdoor viewing activites, including birdwatching, target shooting and astronomy. The superb extra-low dispersion (ED) glass objective lens element virtually eliminates chromatic aberration to deliver true colour reproduction, and edge-to-edge sharp images. The optics are fully multi-coated for excellent light transmission, resolution and contrast. Focusing is ultra-smooth and precise, provided by the superb 10:1 ration dual-speed focuser. The highly desirable micro-focusing feature significantly refines the focusing process at all magnifications. The spotting scope is waterproof and nitrogen sealed for clear fog-free viewing. Other features include an extendable lens hood, twist-up eyecup for spectacle wearers and standard 1/4-20 tripod bush. Supplied with soft case.

View full product info and print page

Email page to a friend

Standard Specification

Model	HELIOS FALCON ULTRA 20-60X80ED
Specification	20-60X80ED
Magnification	20X-60X
Object Lens Diameter	80MM
Focal Lengh	500MM (f/6.25)
Actual Field of View	1.5 to 1.1 Degrees
Nearest Focus Distance	7.3M
Product Code	40173
Price	£ 449.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FIELDMASTER-A90
30-90x90 WATERPROOF ZOOM SPOTTING SCOPE

The Fieldmaster-A90 offers large aperture & high magnification performance at an astonishing price. The spotting scope is rubber armoured to protect against knocks, waterproof and nitrogen-filled for fog-free viewing. Lightweight polycarbonate body. Features fully-coated optics and an extendable dew shield/sun shade. Eye relief from 18 to 15mm. Supplied with Stay-On Case and tabletop tripod, but can also be fitted to a full-size tripod via its tripod bush.

View full product info and print page

Email page to a friend

Standard Specification

Model	FIELDMASTER-A90
Specification	30-90x90
Magnification	x30 to x90 Zoom
Object Lens Diameter	90mm
Field of view	1.5 to 0.8 degrees
Nearest Focus Distance	10m
Product Code	40903
Price	£ 119.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FIELDMASTER-ED80DS
20-60x80 ED DUAL-SPEED WATERPROOF ZOOM SPOTTING SCOPE

The new Fieldmaster-ED80DS is perfect for serious birdwatching and nature observations. This high-end instrument features a triplet objective lens providing a highly corrected image and overall excellent optical performance. Exotic ED (Extra-low dispersion) glass is employed in its construction which virtually eliminates chromatic aberation and delivers high-fidelity true-colour images. Optics are fully multi-coated throughout. Features a precision 10:1 ratio dual-speed focuser for exceptional focusing accuracy. Fully waterproof and nitrogen-filled for clear, fog-free viewing. The supplied zoom eyepiece provides a generous 20-18mm of eye relief. Features a lightweight polycarbonate body with sliding dewshield/sun shade. Supplied with Stay-on case and tabletop tripod but can be used on a full-size tripod via its standard tripod bush.

View full product info and print page

Email page to a friend

Standard Specification

Model	FIELDMASTER-ED80DS
Specification	20-60x80ED
Magnification	20x to 60x
Object Lens Diameter	80mm
Field of view	2.1 to 1 degrees
Actual Field of View	111 to 39ft @ 1000yds
Nearest Focus Distance	4m
Product Code	40909
Price	£ 399.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FIELDMASTER-ED60DS
15-45x60 ED DUAL-SPEED WATERPROOF SPOTTING SCOPE

The new Fieldmaster-ED60DS is perfect for serious birdwatching and nature observations and is available at a groundbreaking price. This high-end instrument features a doublet objective lens providing a very well corrected image and overall excellent optical performance. Exotic ED (Extra-low dispersion) glass is employed in its construction which virtually eliminates chromatic aberation and delivers high-fidelity true-colour images. Optics are fully multi-coated throughout. Features a precision 10:1 ratio dual-speed focuser for exceptional focusing accuracy. Fully waterproof and nitrogen-filled for clear, fog-free viewing. The supplied zoom eyepiece provides a generous 20-18mm of eye relief. Features a lightweight polycarbonate body with sliding dewshield/sun shade. Supplied with Stay-on case and tabletop tripod but can be used on a full-size tripod via its standard tripod bush.

View full product info and print page

Email page to a friend

Standard Specification

Model	FIELDMASTER-ED60DS
Specification	15-45x60ED
Magnification	x15 to x45
Object Lens Diameter	60mm
Field of view	2.8 to 1.3 degrees
Actual Field of View	147 to 69ft @ 1000yds
Nearest Focus Distance	5m
Product Code	40908
Price	£ 199.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

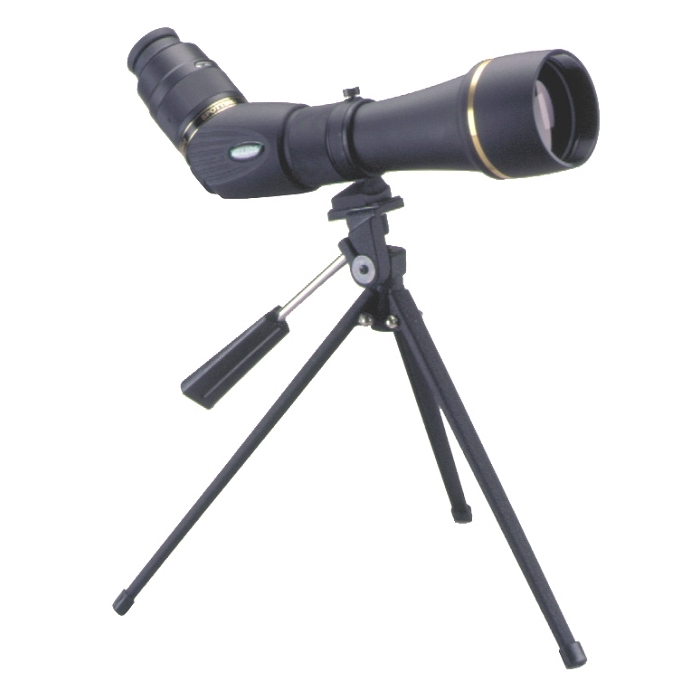

FALCON 20-60x60
WATERPROOF SPOTTING SCOPE

A high quality zoom model, with 45° viewing angle. Supplied complete with tabletop tripod, but can be mounted on a full-size photographic tripod if required. This model is waterproof and nitrogen-filled for fog-free viewing. Popular with prone target shooters, as the spotting scope body can be rotated in its specially designed mounting-ring, to position the eyepiece at a convenient angle to avoid excessive body movement between shots. A camera adaptor (Prod.Code 442) is available separately. Colour Material: Black Rubberised Coating.

View full product info and print page

Email page to a friend

Standard Specification

Model	FALCON 20-60x60
Specification	20-60x60
Magnification	20x-60x
Object Lens Diameter	60mm
Length	340mm
Weight (without tripod)	1070g
Product Code	40333
Price	£ 99.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST1545
50MM ZOOM SPOTTING SCOPE

View full product info and print page

Email page to a friend

Standard Specification

Model	ST1545
Standard Specification	15-45x50
Magnification	x15-x45 (Zoom)
Object Lens Diameter	50mm
Tabletop tripod & Carry Case
Product Code	40774
Price	£ 39.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EVOLUTION<SUP><FONT SIZE='-1'>TM</FONT></SUP> 9569AC

EVOLUTION^TM 9569AC
3-Way Medium-Duty Tripod

A good quality tripod offering an economically priced platform for Spotting Scopes up to 100mm in Diameter and traditional-style observations binoculars of up to 80mm Diameter. Also recommended for Camcorders and Compact Digital Cameras.

Maximum Height (fully extended): 150cm
Minimum Height (retracted): 53cm
Quick-Adjust Vertical Tension
Geared 32cm Centre Column with Lock & Brace
360° Panning, -90° to +60° Vertical Adjustment
Tilting Photographic Head allows Portrait Photography
3-Section Aluminium Legs with Clip-type Leg-Locks
Bubble-Level for Accurate Levelling
Rubber Feet
Innovative Loop Pan Handle Doubles as Carrying Handle
Weight 1.6kg

	Prod. Code
EVOLUTION^TM 9569AC	50841	SRP £ 54.99
Spare Quick-Release Plate	50894	SRP £ 4.99

View full product info and print page

Email page to a friend

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UNIVERSAL 1.25" & 2" DIGISCOPING ADAPTORS

These ingeniously designed digital camera adaptors allow photography directly through the eyepiece of Astronomical Telescopes, Spotting Scopes and Microscopes. Accepts most Compact Digital Cameras with tripod bush. Micro-adjustable for perfect centering of camera lens. Two models available to fit different diameter eyepieces.

Digiscoping adaptor in use (Camera and spotting scope not included)

	Prod. Code
1.25" Universal Digiscoping Adaptor	50823	SRP £ 39.99
2" Universal Digiscoping Adaptor	50901	SRP £ 39.99

View full product info and print page

Email page to a friend

Digiscoping adaptor in use (camera and spotting scope not included)

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST2060
60MM ZOOM SPOTTING SCOPE

View full product info and print page

Email page to a friend

Standard Specification

Model	ST2060
Standard Specification	20-60x60
Magnification	x20-x60 (Zoom)
Object Lens Diameter	60mm
Deluxe tabletop tripod
Product Code	40775
Price	£ 49.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DELUXE MICRO-ADJUSTABLE TABLETOP TRIPOD

Standard 1/4-20 Tripod Connector
Height Adjustable Centre Column
Micro-Elevation Adjustment

	Prod. Code
DELUXE MICRO-ADJUSTABLE TABLETOP TRIPOD	20365	SRP £ 24.99

View full product info and print page

Email page to a friend

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CAR WINDOW/FENCE MOUNT

	Prod. Code
CAR WINDOW/FENCE MOUNT	50341	SRP £ 24.99

View full product info and print page

Email page to a friend

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HORIZON<SUP><FONT SIZE='-1'>TM</FONT></SUP> 8115

HORIZON^TM 8115
2-Way Heavy-Duty Tripod

This robustly constructed model combines excellent stability, with precise control, and is ideal for a wide variety of imaging equipment. Comfortably manages all Spotting Scopes and Observation Binoculars of up to 100mm Diameter. Can be used effectively indoors, or in the field. Recommended for Serious Nature Observing, Astronomical Observing and Video applications.

Maximum Height (fully extended): 180cm
Minimum Height (retracted): 78cm
Quick-Adjust Vertical Tension
Geared 31cm Centre Column with Lock & Brace
360° Panning, -90° to +60° Vertical Adjustment
3-Section Heavy-Duty Tubular Aluminium Legs
Bubble-Level for Accurate Levelling
Heavy-Duty Twist-Type Leg-Locks with Rubber Grips
Self-Levelling Rubber Feet with Screw-out Metal Spikes
Weight 3.58kg

“Extends to an impressive height…The tripod remains stable even when extended, due to a bracket that locked the legs into place…We especially liked the way in which the adaptor plate was fitted into the mount, which is held in place by a sprung locking mechanism. Telescopes are expensive, so it’s worth making sure they are securely attached.”
BBC Sky At Night Magazine

	Prod. Code
HORIZON^TM 8115	50842	SRP £ 89.99
Spare Quick-Release Plate	50896	SRP £ 5.99

View full product info and print page

Email page to a friend

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The prices listed on this website are U.K. suggested retail prices (SRP) including VAT for reference purposes only
and that prices may vary from dealer to dealer. Please contact your nearest stockist for firm pricing information.
As we are purely a distributor, we regret we are unable to sell directly to the public.
Specifications subject to variation due to later production changes. E&OE.
