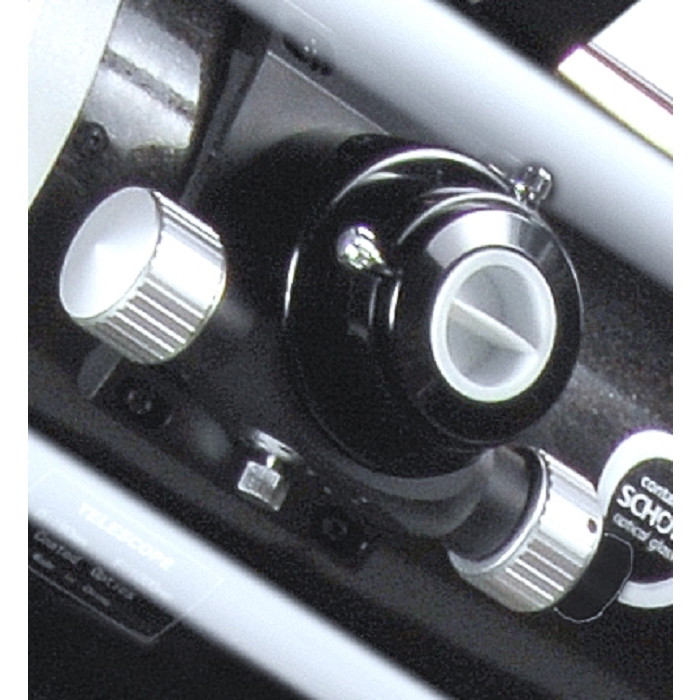

Selected high-end Sky-Watcher telescopes benefit from the inclusion of Schott glass in their construction. Schott is the recognised world leader in glass utilised for precision optical lens systems, including medical instrumentation and famous brand camera lenses. Sky-Watcher’s parent company signed a worldwide exclusive telescope co-branding agreement with Schott in March 2008.
Schott glass is currently present in the EVOSTAR-ED APO Refractors, the SKYMAX-150 & 180 PRO Maksutov-Cassegrains, EQUINOX ED APO Refractors and the EXPLORER-190MN PRO Maksutov-Newtonian

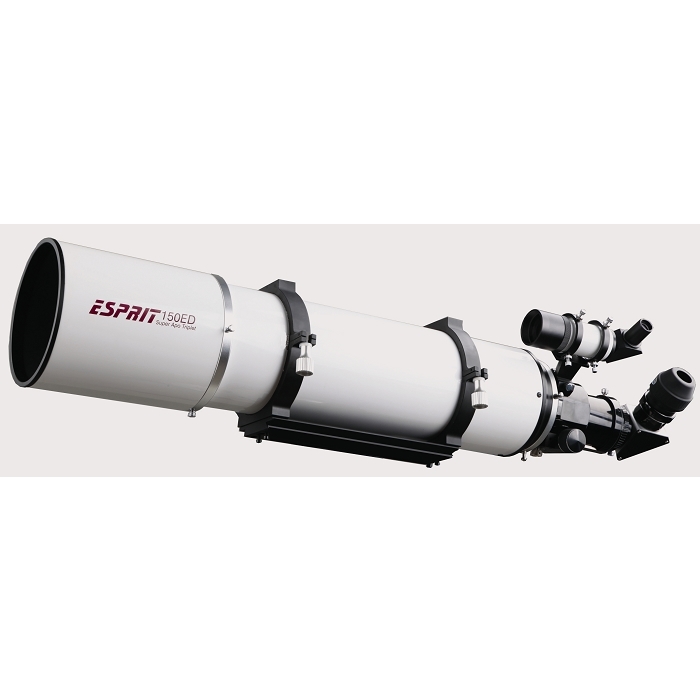

ESPRIT-150ED PROFESSIONAL F/7 SUPER APO TRIPLET REFRACTOR
We are proud to introduce the new Sky-Watcher Professional ESPRIT 3-Element ED apochromatic refractors. These are instruments of the highest quality with optical performance rivalling or exceeding similar telescopes of even the most famous high-end telescope brands.
The ESPRIT Super Apo Triplets are designed for the most demanding astro-imagers but are also fine telescopes for visual observations. The premium, superbly-corrected optical systems deliver high-contrast images full of detail with pin-point stars right up to the edge of the field and zero detectable colour fringing, even on the brightest of objects.
MAIN FEATURES:
• 3-Element Objective Lens, Focal Length 1050mm (one Ohara FPL-53 and 2 x Schott lenses)
• 3” CNC Machined 11:1 Rotatable Dual-Speed Linear Power Focuser
• Full-frame Corrected Focal Plane
• Excellent Field Flatness
• Zero detectable Colour Fringing even on Bright Objects
• Metallic High-Transmission Lens Coatings
• Knife-edge Baffled Optical System
• High-precision Mechanical Components
• Aluminium OTA material (superior to plain carbon-fibre for this application)
• Retractable Dew Shield
• OTA Weight 14.52kg (without accessories), 17.04kg (with accessories)
3” DUAL-SPEED LINEAR POWER FOCUSER
• 3” LPF with 2” and 1.25” eyepiece adaptors and indexed scale
• Zero focus-shift during focusing
• High Load Capacity - holds up to 5kg of accessories whilst focusing and up to 10kg when locked.
• New drawtube with steel sheet held by four large bearings makes focusing smoother than ever
• The smooth focus motion and 11:1 fine focus wheel allows precision adjustment and critical focusing of eyepieces & cameras
• Patent-pending design
ACCESSORIES SUPPLIED:
M48 Doublet Field Flattener (x1), 2” Dielectric Star Diagonal, 28mm 2” LET Eyepiece, 9x50 Right-Angled Erect Image Finderscope, Tube Rings and Dovetail Mounting Bar
Acuter DS-PRO SERIES DS20-60x80A Dual-Speed Waterproof Spotting Scope
The new Acuter DS-PRO series advanced achromatic waterproof spotting scopes are exceptionally stylish and highly functional precision optical instruments.
They combine excellent optical performance with many desirable high-end features that make them perfect companions for Birdwatching, Serious Nature Observations, Target Shooting and even Astronomy.
The DS20-60x80A is supplied as standard with a 20x-60x (8-24mm) Zoom Eyepiece but can be used with virtually any standard 1.25" push-fit telescope eyepiece for exceptional versatility. The spotting scope can be fully rotated in its collar to change the orientation of the eyepiece. Fully multi-coated Optics.
Standard Features Include:
Dual-Speed Focuser (15:1 Ratio) with Precision Fine-Focusing
Accepts Standard 1.25" Push-fit Telescope Eyepieces
Extendable Sunshade/Dewshield with Handy Sighting Line

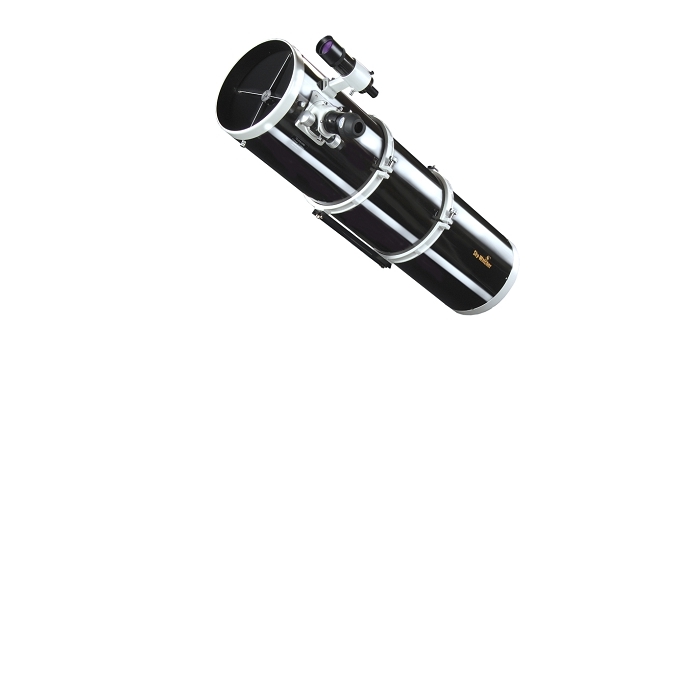

The new QUATTRO series with their fast f/4 focal ratios, have been specially designed for high quality astrophotography with short exposure times. They are of course also fine telescopes for visual observations. Tube interiors have knife-edge ray traced baffles.
Two versions of the QUATTRO-8 OTA's are available:
QUATTRO-8S with Steel Tube QUATTRO-8CF with Carbon Fibre Tube (illustrated)
CARBON FIBRE TUBE (QUATTRO-8CF only): Carbon fibre is a strong and lightweight material and has much better thermal stability compared to a steel tube. This is especially important for astro-photographers dealing with long exposure times. Imaging telescopes made of less thermally stable material can deviate from optimum focus after long time exposures. With a carbon fibre tube, it can remain in focus for a longer period of time and long exposure images will stay clear and in focus.
2" DUAL-SPEED LINEAR POWER FOCUSER (both models): The new linear power focuser utilises 4 precision ball bearings to support the drawtube and provide great stability and zero image shift while supporting a heavy eyepiece or camera. Moving the drawtubeby the roller rather than a rack and pinion ensures exceptionally smooth operation, great feel and precise adjustability. The dual-speed feature has a second focus knob that has a 10:1 speed reduction to provide the super-fine adjustments even the most demanding users can appreciate.
PYREX MIRRORS: Both models feature paraboloidal primary mirrors made of low thermal expansion Pyrex glass resulting in substantially shorter cooling-down times.
Standard Specification:
Highest Practical Power (Potential) x410
Diameter of Primary Mirror 205mm
Telescope Focal Length 800mm (f/4)
Note: Eyepieces NOT supplied
9x50 Finderscope
Parabolic Primary Mirror (Pyrex)
2" (50.8mm) Dual-Speed 10:1 Linear Power Focuser
Tube Rings & Dovetail Bar
0.5mm Ultra-Thin Secondary Mirror Supports
77% more Light-Gathering than 150mm
note: equatorial mount not included
"The Quattro's tube is lined with a set of nine internal baffle rings. Their main purpose is to cut down on stray light entering the telescope tube, helping to improve image contrast, but they also lend a bit of extra stability to the tube structure....The Quattro-8S is fitted with a Crayford-style focuser that performed well. It has tension adjustment, focus-lock and a 10:1 dual-speed fine focusing option, and also comes with a 2-inch fitting that has a T-thread on its external side. This allows a good connection to be made between scope and camera with the right adaptor ring....Visually, the Pleiades looked like diamonds hanging in space, with a hint of nebulosity visible around the brightest star Merope. The stars were generally crisp and sharp, with good colour on show. The scope is superb for imaging too, delivering shots that appeared to have higher contrast t han the other scopes on test." BBC Sky At Night Magazine (Quattro-8S model)

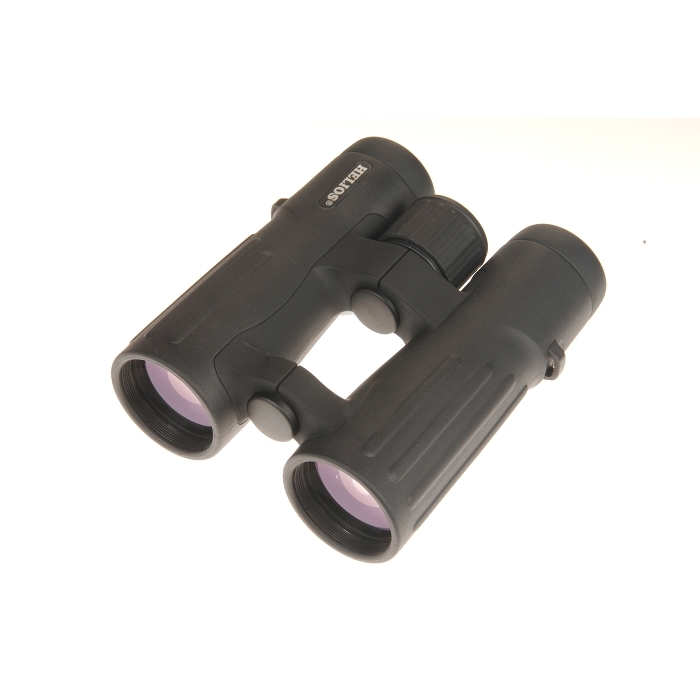

Ideal for birdwatching, these stylish premium quality, rubber armoured, modern open-hinge models combine light weight (magnesium alloy body) with excellent optical performance. Employs exotic ED (Extra low dispersion) glass for superior colour fidelity. Features high-index Phase-Corrected Bak-4 prisms and full broadband multi-coated optics. O-ring sealed and nitrogen filled for waterproof, fog-free performance. Twist-up rubber eyecups for spectacle wearers. Eye relief is 18.4mm and 15.2mm respectively (8x42 & 10x42 models). Supplied with neckstrap and case. Colour/material: Green rubber

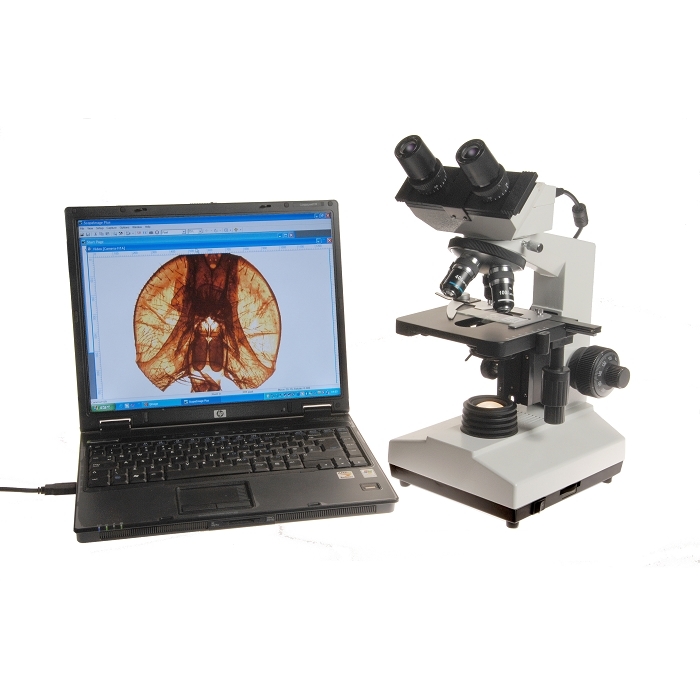

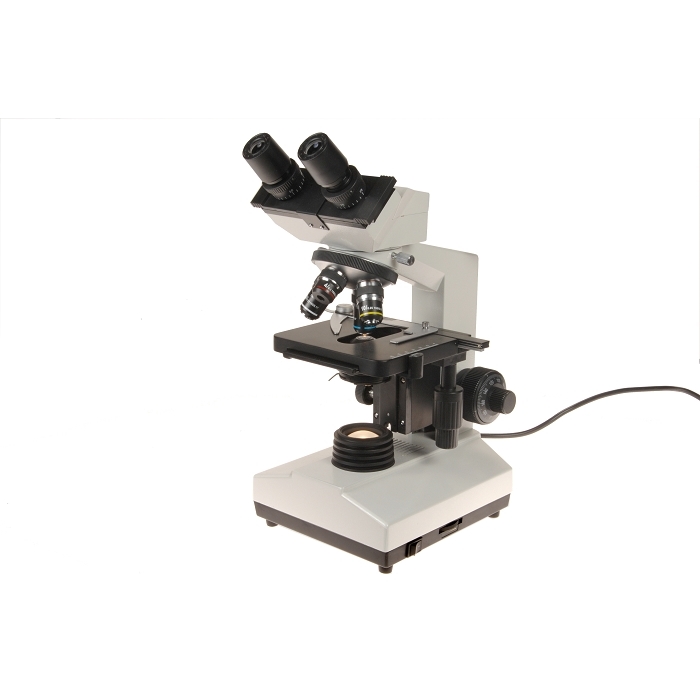

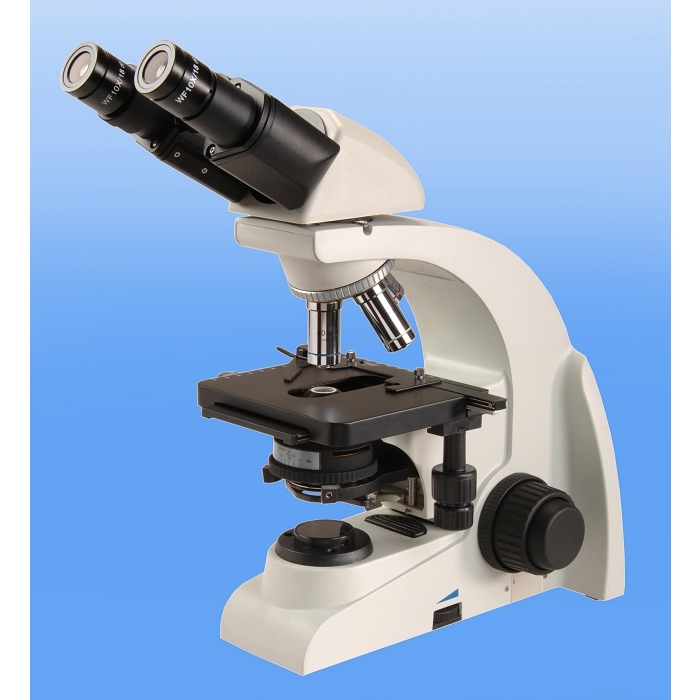

Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and excellent optical performance.
Equipped with infinity-corrected achromatic optical system. Chromatic aberrations and field curvature of field are both ideally corrected over the field of view. Infinity objectives, with higher numerical apertures, produce crisp and clear images..
Ideal for use in colleges, universities and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended.
Standard Specification
Magnification range x40, x100, x400 & x1000
Paired x10 DIN standard high eyepoint, widefield Plan eyepieces. Field 18mm, eyepoint 21mm
Infinity achromatic objectives DIN standard Parfocal, parcentred x4(0.13),x10(0.30),40R(0.70),x100R(1.25) oil immersion (R=retractable)
Bright field ABBE condenser (N.A. 1.25) with colour-coded iris diaphragm scale and filter carrier on fully focusing Substage
Build in 230v, 6v 20w halogen illumination with continuously variable rotary brightness control
Co-axial coarse and fine focusing with indexed scale and adjustable focus tension
Smooth action x-y mechanical stage 142x135mm with co-axial drop controls and an adjustable spring arm to accommodate slides of different sizes
Seidentopf binocular head, inclined 30 degrees Rotatable 360 degrees with full inter-pupillary adjustment (52-75mm). Magnification factor x1
Reversed position quadruple objective turret on sealed ball bearing race

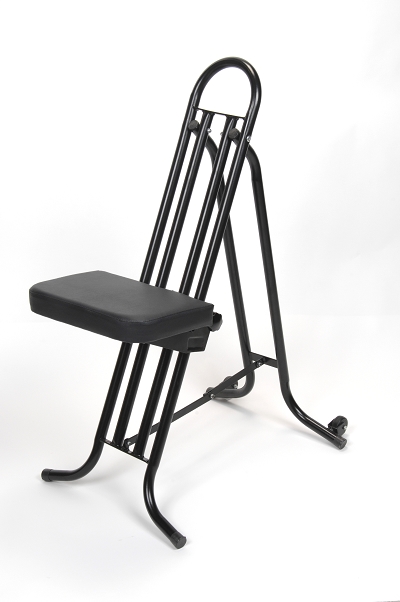

SKYWATCHER ANTI-TIP OBSERVING CHAIR Add Solid Comfort to Your Observing Session
Every astronomer should have one of these! The deluxe new observing chair from Sky-Watcher is a lightweight, rock solid platform featuring a height-adjustable padded seat. To change the seating position you just lift the seat and raise it or lower it. No tools are needed, and adjustments are done in a matter of seconds. The observing chair replaces awkward stances and squats with simple comfort. It is a pleasure to use whether you observe with refractors, reflectors or catadioptric telescopes.
Perhaps the nicest feature is the no-tip foot design. Unlike other (and substantially more expensive models) on the market, the Sky-Watcher observing chair has been designed to retain its balance and stability at all seating heights. This is a great improvement over other models that have a tendency to tip easily. Light weight and foldable for easy transportation. The chair now incorporates a simple spring mechanism which prevents the seat from dropping when lifted.
Extended Dimensions: 95cm(H) x 46cm(W) x 65cm(D) Folded Dimensions: 108cm(H) x 46cm(W) x 15cm(D) Adjustable Seat heights: 30-82 cm(H) Weight: 6Kgs

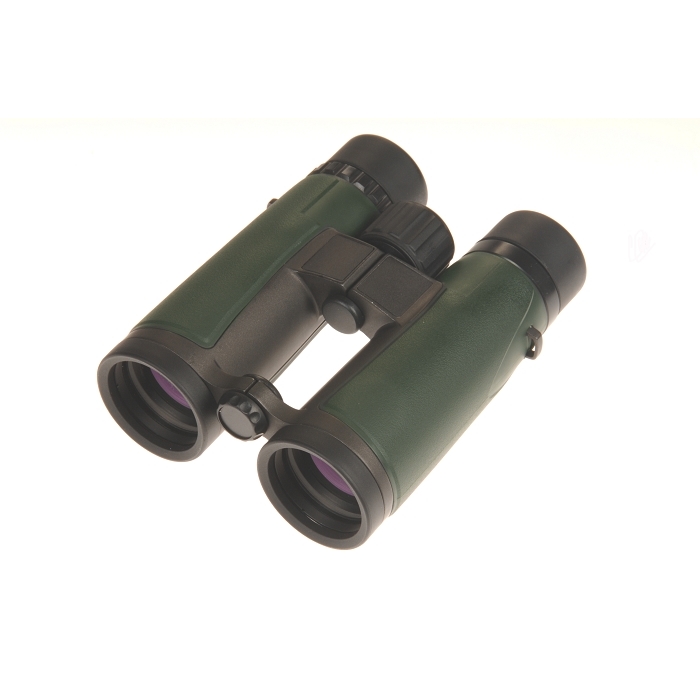

Ideal for birdwatching, these stylish high quality, rubber armoured, modern open-hinge models combine light weight with excellent optical performance. Feature high-index BaK-4 prisms and fully broadband multi-coated optics. O-ring sealed and nitrogen filled for waterproof, fog-free performance. Features an advanced patented click-lock dioptric adjustment integrated in the focusing wheel. Twist-up eyecups for spectacle wearers. Eye relief is 18mm and 15mm respectively (8x42 & 10x42 models). Supplied with neckstrap and case. Colour/Material: Black Rubber
"Well the first thing to say about the Ultrasports is just how snugly they fit in the hand - they're pretty compact for 8x42's, they feel light (and they are at 646g) and thoroughly well balanced, and they have a neat, unfussy open bridge design, meaning that you barely notice that you've got them with you....they're waterproof and fog-free, and very solidly put together....the image is sharp, bright and boasts a very natural colour tone.....what's most outstanding for binoculars costing less than £150 is the lack of edge softness - you get full value for almost all of the 129m@1000m field....focusing was precise and easy...All things considered its hard not to be really impressed" BIRDWATCHING MAGAZINE

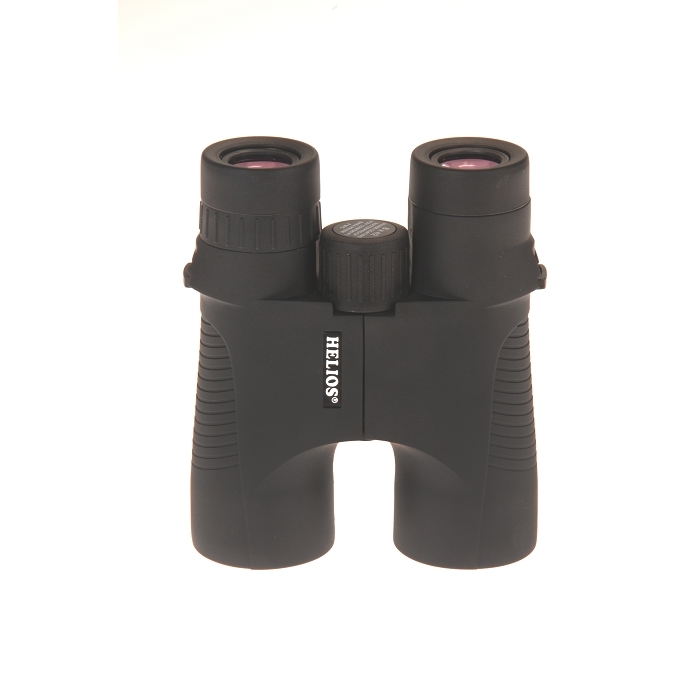

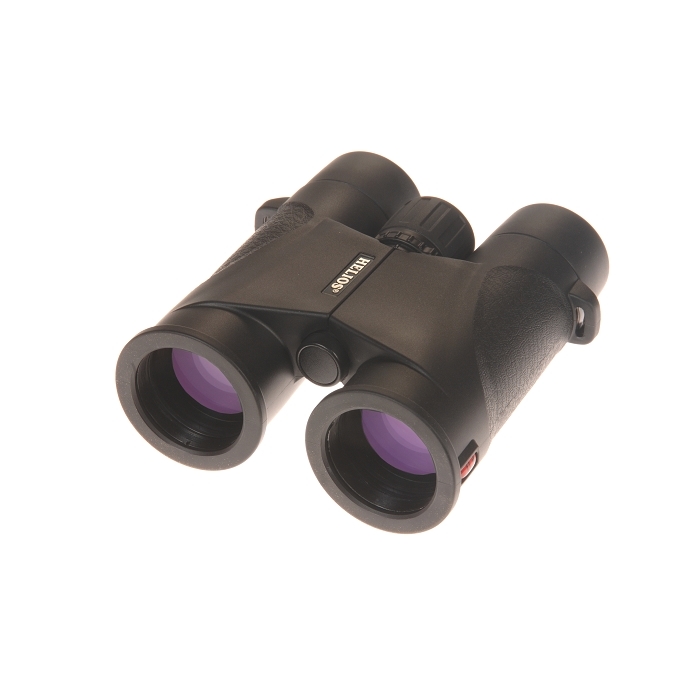

NIRVANA-ED HIGH RESOLUTION WATERPROOF ED BINOCULARS
Top quality waterproof binoculars ideal for Birdwatching and nature study. The fully broadband multi-coated optics and Phase-Coated high-index BaK-4 prisms provide excellent optical performance. Employs exotic ED (Extra Low Dispersion) glass for enhanced colour fidelity. Wide field of view and generous eye relief. Eye relief is 17.2mm and 15mm (8x42 & 10x42 models). The rubber coverered magnesium alloy body is both compact and lightweight . Argon gas filled for waterproof, fog-free viewing, even at very low temperatures. Centre-focusing wheel with click-stop dioptric adjustment. Twist up eyecups for spectacle wearers. Tripod adaptable. Suplied with neckstrap and case. Colour/Material: Black Rubber
Ideal for Birdwatching and nature study. High quality waterproof binoculars with robust but lightweight rubber-armoured, magnesium alloy body frames. Broadband multi-coated optics and Phase-Corrected BaK-4 prisms delivery excellent optical performance. Nitrogen filled for fog-free protection. Twist-up rubber eyecups for specacle wearers. Eye relief 17mm and 15.5mm (8x42 & 10x42 models) Near focus perfomance from 2.2M. Integral tripod bush. Supplied with neckstrap and case. Colour/Material: Black Rubber

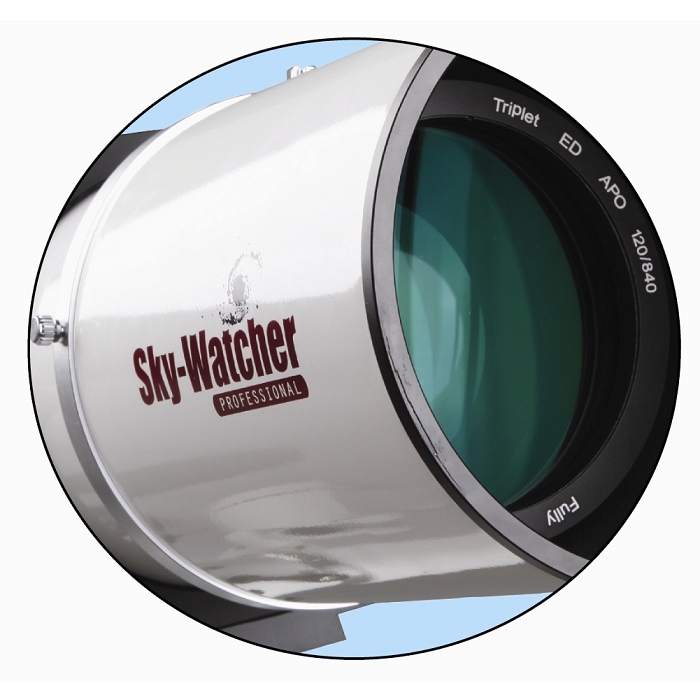

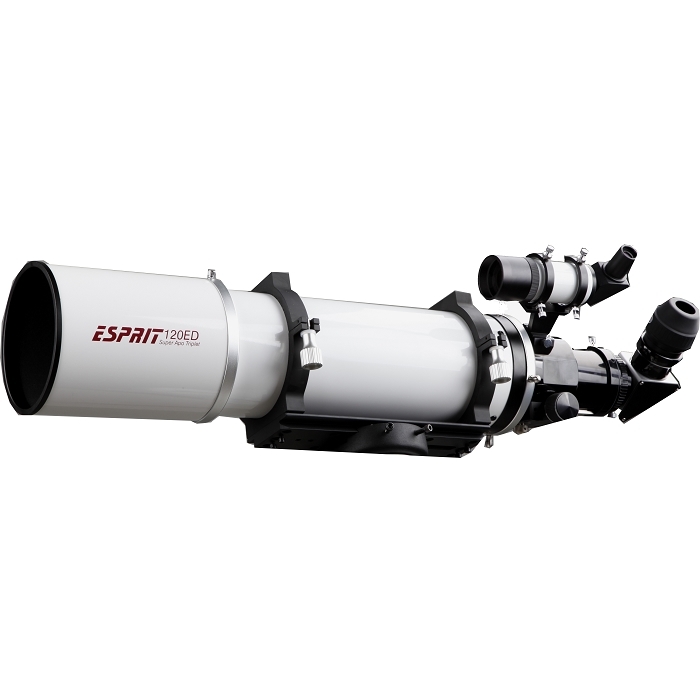

ESPRIT-120ED PROFESSIONAL F/7 SUPER APO TRIPLET REFRACTOR
We are proud to introduce the new Sky-Watcher Professional ESPRIT 3-Element ED apochromatic refractors. These are instruments of the highest quality with optical performance rivalling or exceeding similar telescopes of even the most famous high-end telescope brands.
The ESPRIT Super Apo Triplets are designed for the most demanding astro-imagers but are also fine telescopes for visual observations. The premium, superbly-corrected optical systems deliver high-contrast images full of detail with pin-point stars right up to the edge of the field and zero detectable colour fringing, even on the brightest of objects.
MAIN FEATURES:
• 3-Element Objective Lens, Focal Length 840mm (one Ohara FPL-53 and 2 x Schott lenses)
• 3” CNC Machined 11:1 Rotatable Dual-Speed Linear Power Focuser
• Full-frame Corrected Focal Plane
• Excellent Field Flatness
• Zero detectable Colour Fringing even on Bright Objects
• Metallic High-Transmission Lens Coatings
• Knife-edge Baffled Optical System
• High-precision Mechanical Components
• Aluminium OTA material (superior to plain carbon-fibre for this application)
• Retractable Dew Shield
• OTA Weight 9.61kg (without accessories), 12.13kg (with accessories)
3” DUAL-SPEED LINEAR POWER FOCUSER
• 3” LPF with 2” and 1.25” eyepiece adaptors and indexed scale
• Zero focus-shift during focusing
• High Load Capacity - holds up to 5kg of accessories whilst focusing and up to 10kg when locked.
• New drawtube with steel sheet held by four large bearings makes focusing smoother than ever
• The smooth focus motion and 11:1 fine focus wheel allows precision adjustment and critical focusing of eyepieces & cameras
• Patent-pending design
ACCESSORIES SUPPLIED:
M48 Doublet Field Flattener (x1), 2” Dielectric Star Diagonal, 28mm 2” LET Eyepiece, 9x50 Right-Angled Erect Image Finderscope, Tube Rings and Dovetail Mounting Bar

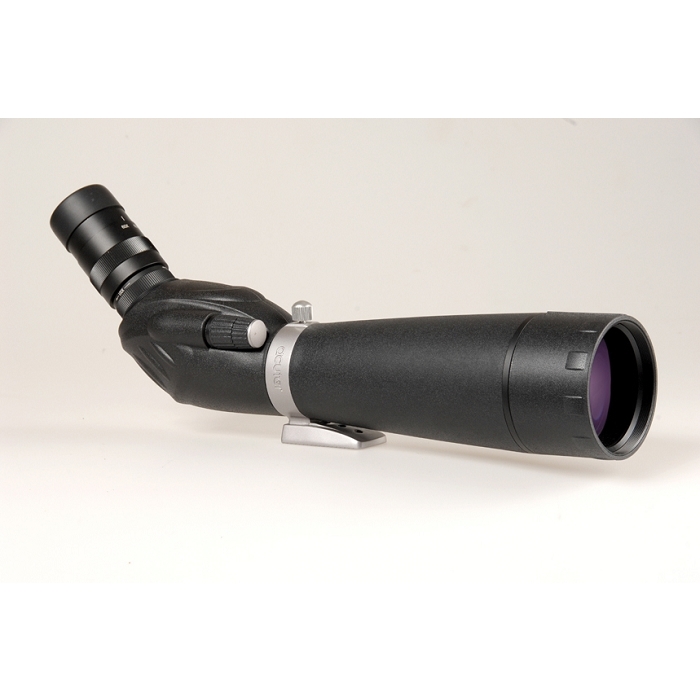

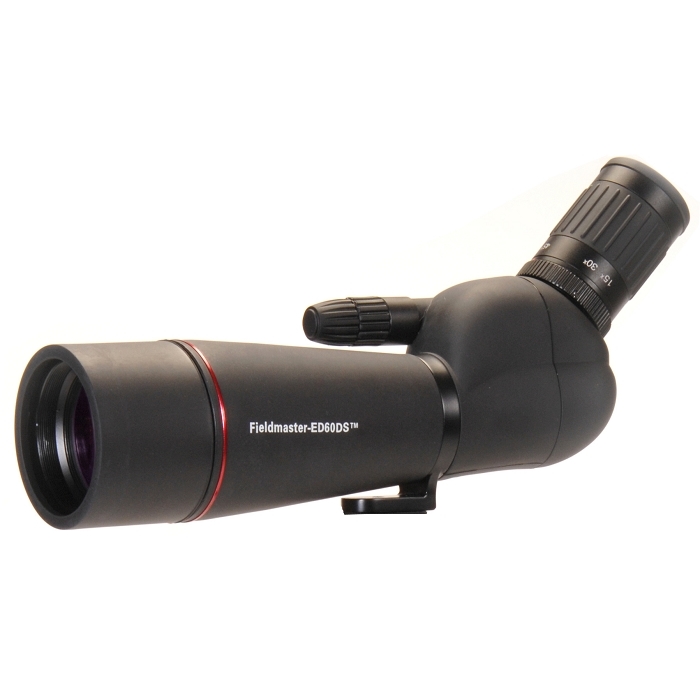

FIELDMASTER-ED60DS 15-45x60 ED DUAL-SPEED WATERPROOF SPOTTING SCOPE
The new Fieldmaster-ED60DS is perfect for serious birdwatching and nature observations and is available at a groundbreaking price. This high-end instrument features a doublet objective lens providing a very well corrected image and overall excellent optical performance. Exotic ED (Extra-low dispersion) glass is employed in its construction which virtually eliminates chromatic aberation and delivers high-fidelity true-colour images. Optics are fully multi-coated throughout. Features a precision 10:1 ratio dual-speed focuser for exceptional focusing accuracy. Fully waterproof and nitrogen-filled for clear, fog-free viewing. The supplied zoom eyepiece provides a generous 20-18mm of eye relief. Features a lightweight polycarbonate body with sliding dewshield/sun shade. Supplied with Stay-on case and tabletop tripod but can be used on a full-size tripod via its standard tripod bush.

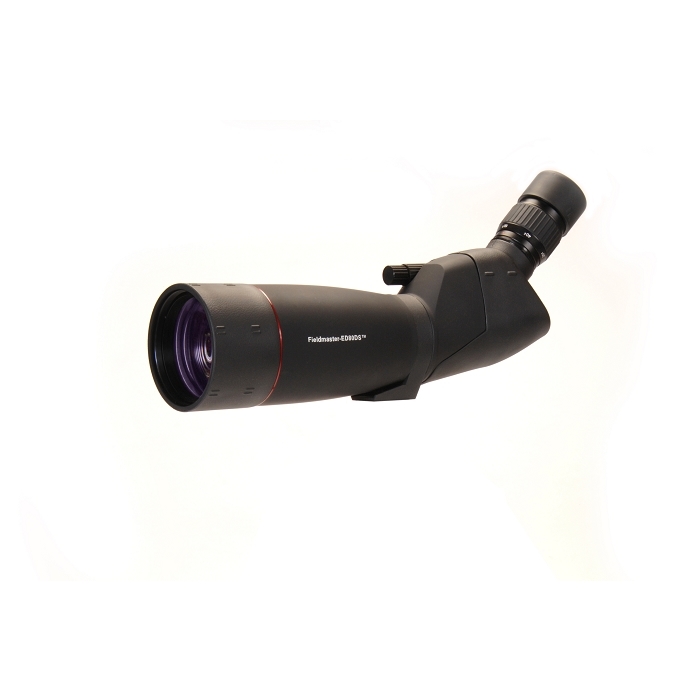

FIELDMASTER-ED80DS 20-60x80 ED DUAL-SPEED WATERPROOF ZOOM SPOTTING SCOPE
The new Fieldmaster-ED80DS is perfect for serious birdwatching and nature observations. This high-end instrument features a triplet objective lens providing a highly corrected image and overall excellent optical performance. Exotic ED (Extra-low dispersion) glass is employed in its construction which virtually eliminates chromatic aberation and delivers high-fidelity true-colour images. Optics are fully multi-coated throughout. Features a precision 10:1 ratio dual-speed focuser for exceptional focusing accuracy. Fully waterproof and nitrogen-filled for clear, fog-free viewing. The supplied zoom eyepiece provides a generous 20-18mm of eye relief. Features a lightweight polycarbonate body with sliding dewshield/sun shade. Supplied with Stay-on case and tabletop tripod but can be used on a full-size tripod via its standard tripod bush.
The Fieldmaster-A90 offers large aperture & high magnification performance at an astonishing price. The spotting scope is rubber armoured to protect against knocks, waterproof and nitrogen-filled for fog-free viewing. Lightweight polycarbonate body. Features fully-coated optics and an extendable dew shield/sun shade. Eye relief from 18 to 15mm. Supplied with Stay-On Case and tabletop tripod, but can also be fitted to a full-size tripod via its tripod bush.

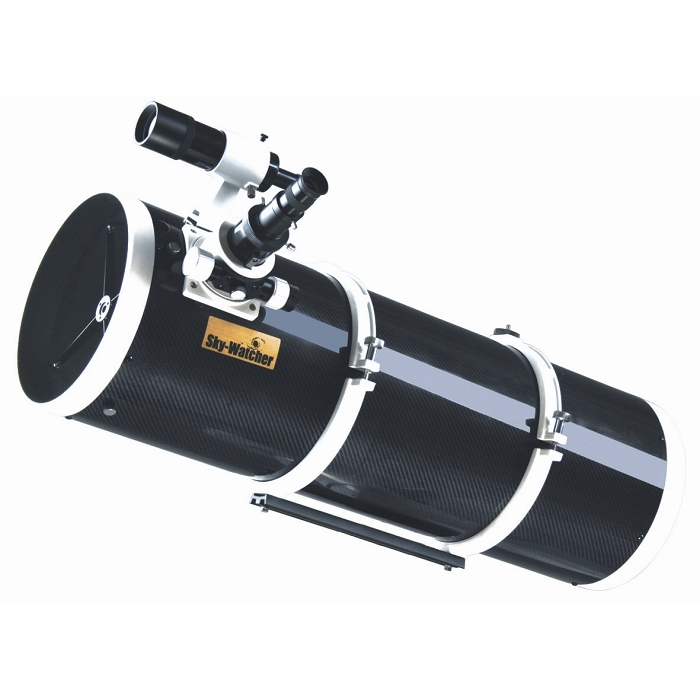

The new QUATTRO series with their fast f/4 focal ratios, have been specially designed for high quality astrophotography with short exposure times. They are of course also fine telescopes for visual observations. Tube interiors have knife-edge ray-traced baffles.
Two versions of the QUATTRO-10 OTA's are available:
QUATTRO-10S with Steel Tube QUATTRO-10CF with Carbon Fibre Tube (illustrated)
CARBON FIBRE TUBE (QUATTRO-10CF only): Carbon fibre is a strong and lightweight material and has much better thermal stability compared to a steel tube. This is especially important for astro-photographers dealing with long exposure times. Imaging telescopes made of less thermally stable material can deviate from optimum focus after long time exposures. With a carbon fibre tube, it can remain in focus for a longer period of time and long exposure images will stay clear and in focus.
2" DUAL-SPEED LINEAR POWER FOCUSER (both models): The new linear power focuser utilises 4 precision ball bearings to support the drawtube and provide great stability and zero image shift while supporting a heavy eyepiece or camera. Moving the drawtubeby the roller rather than a rack and pinion ensures exceptionally smooth operation, great feel and precise adjustability. The dual-speed feature has a second focus knob that has a 10:1 speed reduction to provide the super-fine adjustments even the most demanding users can appreciate.
PYREX MIRRORS: Both models feature paraboloidal primary mirrors made of low thermal expansion Pyrex glass resulting in substantially shorter cooling-down times.
SKYTEE-2 HEAVY DUTY DUAL-LOAD ALT-AZIMUTH MOUNT & TRIPOD
The SKYTEE-2 is a heavy duty alt-azimuth mount capable of holding two telescope tubes of up to 15Kg each in parallel. A Skywatcher/Vixen type dovetail saddle plate is included on each side of the mount. Precise manual slow motion controls are provided on each axis . A counterweight bar is also included that accepts Sky-Watcher counterweights. Supplied with a Sky-Watcher 1.75" stainless steel tripod.

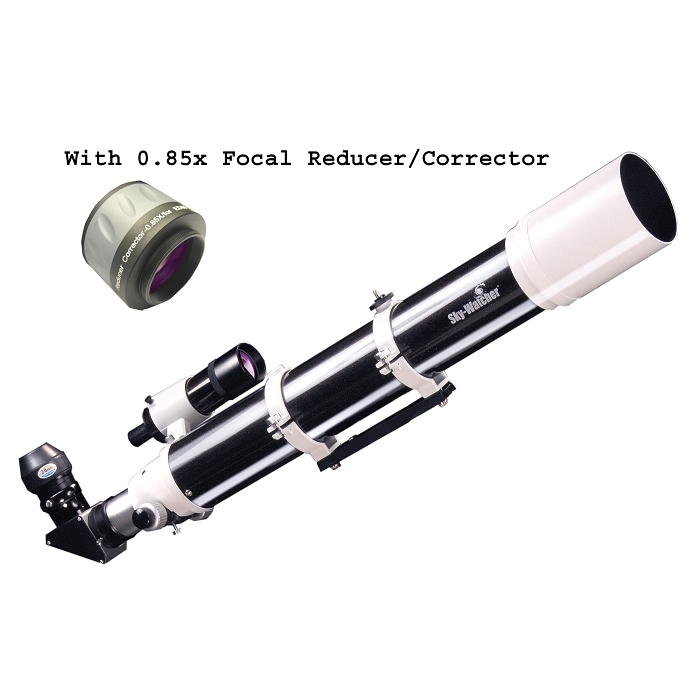

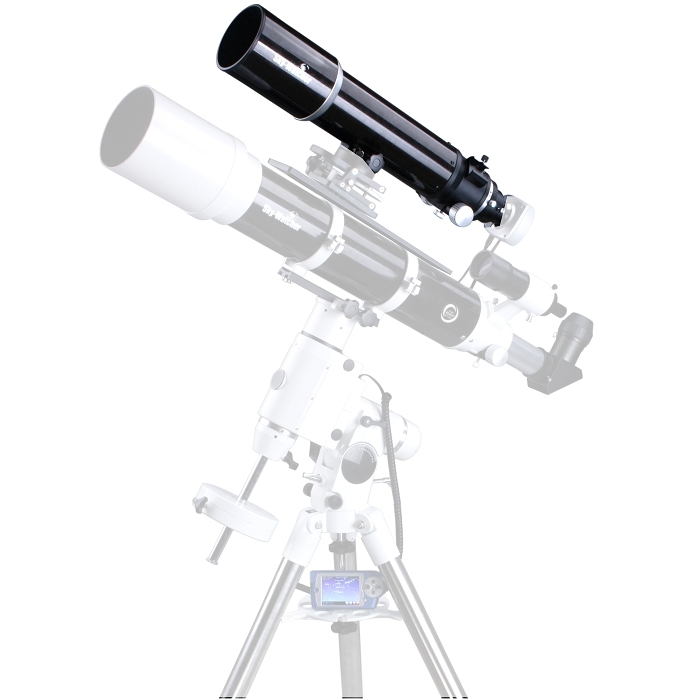

EVOSTAR-100ED DS-PRO (OTA) 100MM 4" (F/900) FLUORITE ED APOCHROMATIC REFRACTOR TELESCOPE (COMPLETE WITH 0.85X FOCAL REDUCER/CORRECTOR)
FANTASTIC OFFER!! SAVE £269.00!!
The new EVOSTAR DS-PRO Series ED Apochromatic refractors in their stunning Black-Diamond livery, house premium optics of the same quality and performance level as our now legendary Equinox series, making them superb instruments for both imaging and visual observations.
Apochromatic Refractors, due to their unobstructed, text-book like diffraction patterns, produce the sharpest, highest quality optical imaging available, bar-none, aperture for aperture, of any telescope optical system.
These high-end telescopes all feature a doublet objective lens. One element is made from premium Japanese Ohara FPL-53 Extra-Low Dispersion (ED) glass, which virtually eliminates chromatic aberration to deliver true colour reproduction. Top quality Schott glass is utilized for the Crown element.
Each air-to-glass lens surface has exotic anti-reflection metallic coatings applied, to ensure optimum light through-put of approaching 99.5%!!
The proprietary Sky-Watcher “Metallic High-Transmission Coatings” (MHC) are the finest photon anti-rejection coatings in their class.

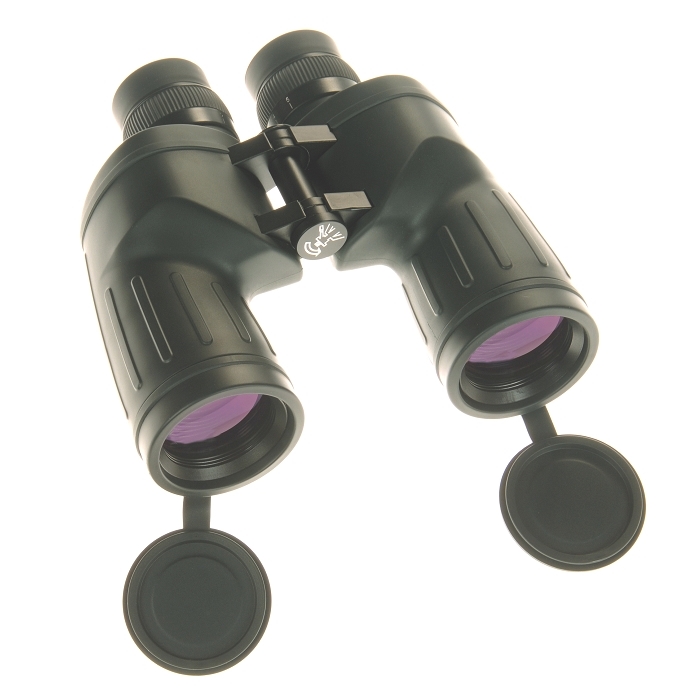

Helios APOLLO 7x50 High Resolution Waterproof Observation Binoculars
Top quality waterproof , nitrogen filled observation binoculars, with individual eyepiece (IF) focusing, designed for Marine use, low light terrestrial observations and astronomy. Shockproof design incorporating a robust all-metal body construction. Features BAK-4 prisms and a fully broadband multi-coated optical system. The high-resolution optical system features high-transmission lens and prism coatings allowing a massive 92% light transmission, producing a flat field a distortion-free images. Exotic eyepiece design featuring oversized elements and long eye-relief and fold-down rubber eyecups for spectacle-wearers. Features integral tripod mounting bush and threaded eyepiece units to accept standard 1.25” astronomical light-filters. Finished in stylish Dark Green Rubber and supplied with padded carrying case.

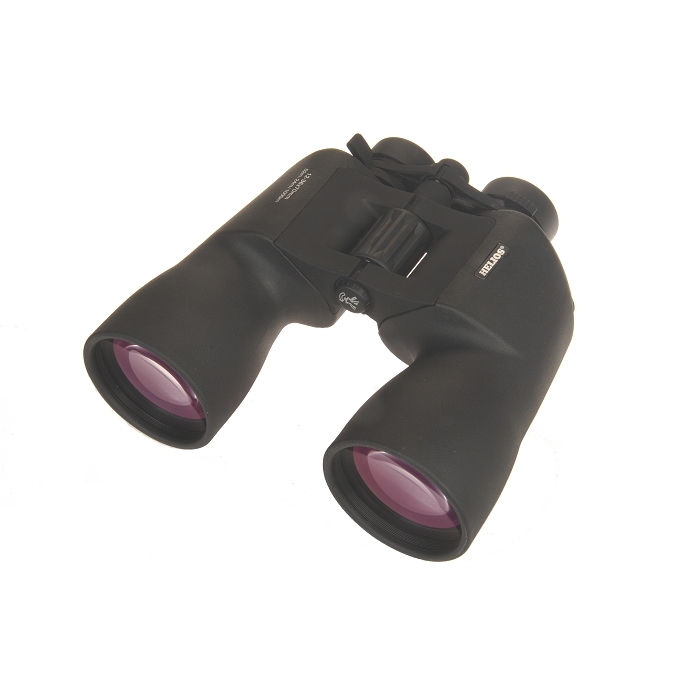

POWERMASTER 10-30x60/12-36x70/13-40x80 HIGH POWER ZOOM BINOCULARS
Available in 60mm, 70mm and 80mm sizes, these large aperture rubber-armoured binoculars with their powerful continuous zoom magnifications will bring distant objects close into view. All models feature quality BK-7 prisms and fully multi-coated optics. Twist-up eyecups are provided making them suitable for spectacle wearers. A tripod adapter bush is incorporated so the binoculars can be easily mounted onto a photographic tripod with an L-type binocular tripod adapter. Supplied with neckstrap & case. Colour/Material: Black rubber
Please note: Powermaster 12-36x70 Model Illustrated

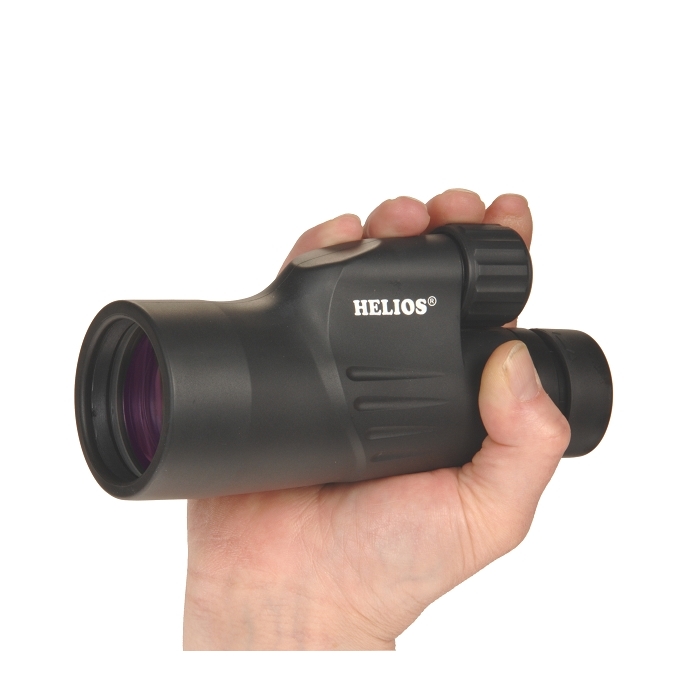

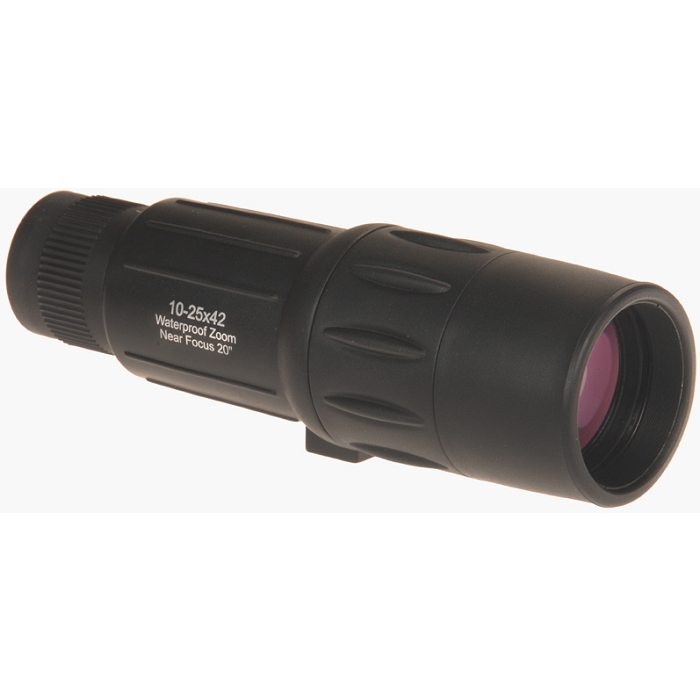

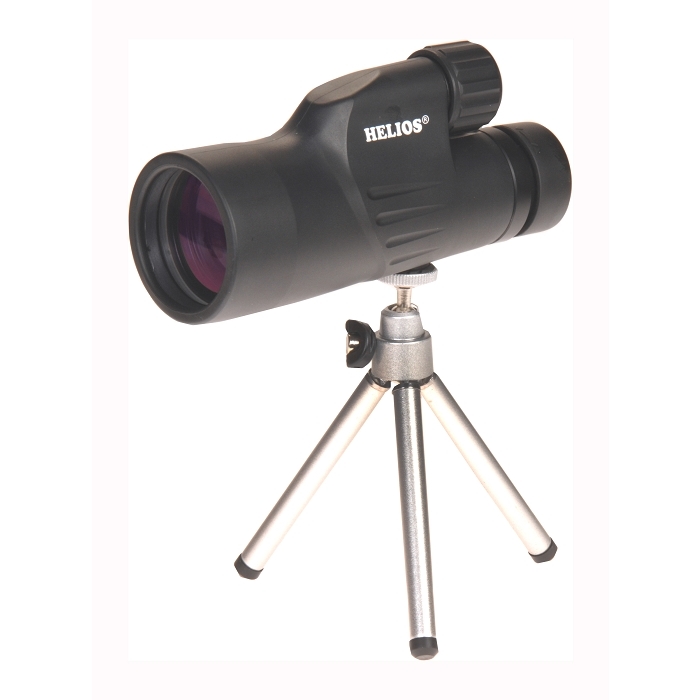

This high quality, ergonomically designed 42mm aperture waterproof monocular provides a powerful magnification range of 10x-25x. Eye relief varies between 14mm-9.5mm. Features fully multi-coated optics and high-index BaK-4 prisms. Nitrogen filled for waterproof and fog-free viewing. Superb near focus performance from as little as 50.8cm (20"). Fold-down rubber eyecup for spectacle wearers. Supplied with neckstrap and case. Colour/material: Black Rubber
This high-quality waterproof monocular is ideal for nature observations and target spotting. The ergonomically designed rubber body fits perfectly in the hand for quick focusing & comfortable operation. Can be mounted on the supplied extendable tabletop tripod or a full-size tripod. High index BaK-4 prisms ans fully multi-coated optcs provide excellent optical performance. Nitrogen filled for waterproof & fog-free performance. Twist-up rubber eyecup for spectacle wearers. Eye relief is 17.5mm and 14mm respecively (10x50 & 12x50 models). Colour/Material: Black Rubber
SKYTEE-2 HEAVY-DUTY DUAL-LOAD ALT-AZIMUTH MOUNT HEAD (Tripod Not Included)
The SKYTEE-2 is a heavy duty alt-azimuth mount capable of holding two telescope tubes of up to 15Kg each in parallel. A Skywatcher/Vixen type dovetail saddle plate is included on each side of the mount. Precise manual slow motion controls are provided on each axis . A counterweight bar is also included that accepts Sky-Watcher counterweights. Compatible with the Sky-Watcher 1.75" stainless steel tripod supplied with the EQ5 and HEQ5 Equatorial mounts.

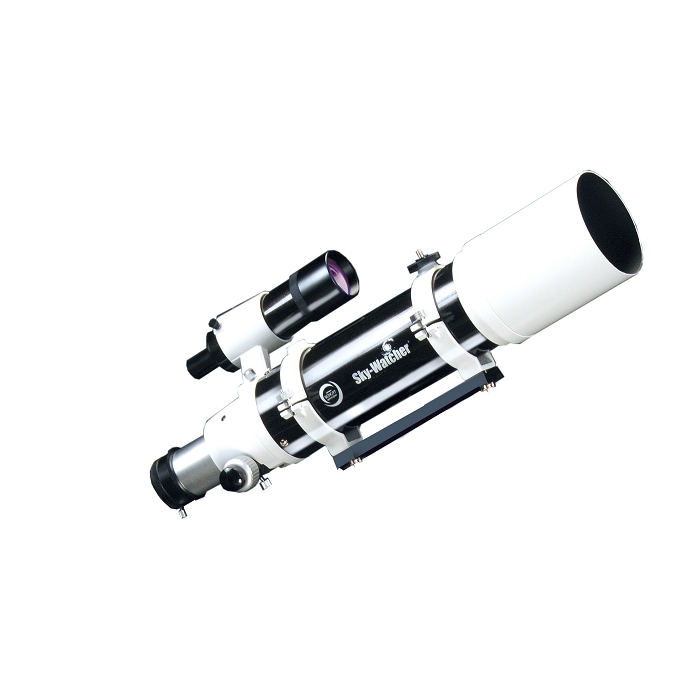

EVOSTAR-80ED DS PRO OTA (Reduced accessory version) 80mm (3.1") ED APOCHROMATIC REFRACTOR OTA (without case, diagonal and eyepiece)
The new EVOSTAR DS-PRO Series ED Apochromatic refractors in their stunning Black-Diamond livery, house premium optics of the same quality and performance level as our now legendary Equinox series, making them superb instruments for both imaging and visual observations.
Apochromatic Refractors, due to their unobstructed, text-book like diffraction patterns, produce the sharpest, highest quality optical imaging available, bar-none, aperture for aperture, of any telescope optical system.
These high-end telescopes all feature a doublet objective lens. One element is made from premium Japanese Ohara FPL-53 Extra-Low Dispersion (ED) glass, which virtually eliminates chromatic aberration to deliver true colour reproduction. Top quality Schott glass is utilized for the Crown element.
Each air-to-glass lens surface has exotic anti-reflection metallic coatings applied, to ensure optimum light through-put of approaching 99.5%!!
The proprietary Sky-Watcher “Metallic High-Transmission Coatings” (MHC) are the finest photon anti-rejection coatings in their class.

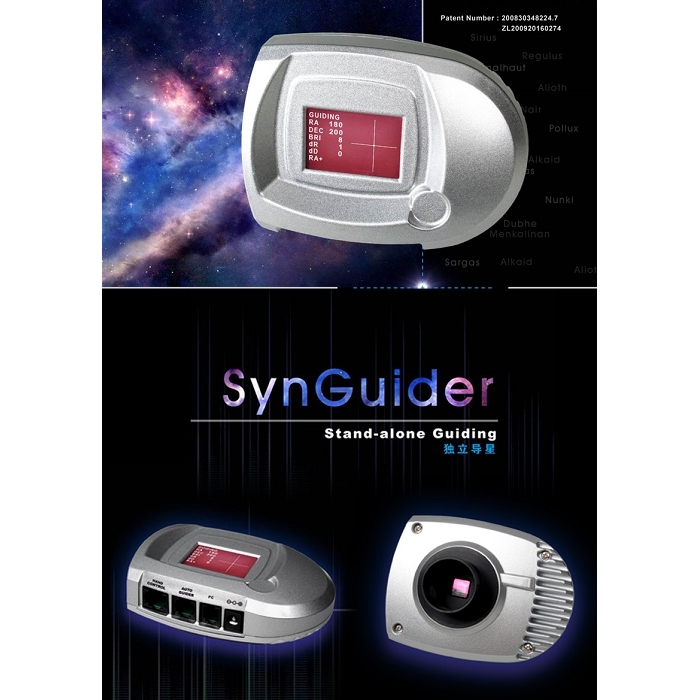

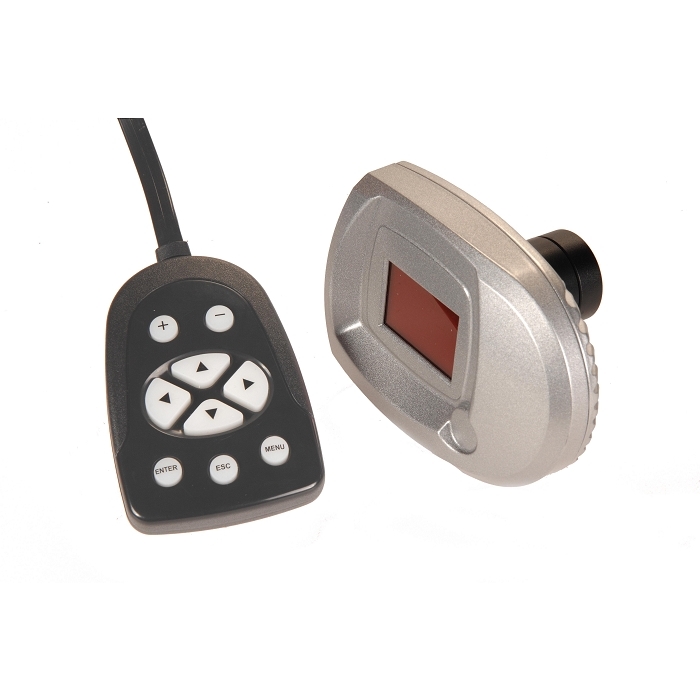

The Sky-Watcher SynGuider Auto-Guider can guide an equatorial mount without the help of a PC/Laptop, improving productivity during astro-photography sessions, helping you to obtain perfectly round stars during long exposure times. The Synguider stand-alone autoguider is supplied with guiding handset & cable, serial cable and battery pack. Requires 4 x D-Size 1.5v batteries or alternative switching AC/DC power supply meeting DC6v-12v (lower voltage recommended), 200Ma-250Ma output current, 2.1mm power jack central positive.
Sky-Watcher Synguider Product Features at a glance:
1) Stand-alone guiding - no computer required
2) Sony ICX404AL CCD Sensor (chip size 5.59mm X 4.68MM)
3) Number of effective pixels 510 x 492
4) Real-time star image display
5) Standard ST-4 autoguider interface
6) M42 and 1.25" telescope interface
7) User upgradeable firmware
8) Exposure times: 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 mS
"The SynGuider's ability to guide a set-up for deep-sky imaging is excellent, and allowed us to capture the North American Nebula with fine detail. We also captured some test images of the region around Vega to compare 5-minute unguided and guided images. The improvement using the SynGuider was obvious...."The SynGuider is very different from most other autoguiding systems in that it is very much a stand-alone unit. This gives an immediate advantage over other autoguiders in that you don't need a PC or guiding software to operate it, so there is less equipment to carry around and set up.
What makes the SynGuider unique is it's built-in display screen. This not only gives access to a comprehensive set of options for controlling the camera and the guiding parameters, but it also displays the actual guide stars. Once you have chosen a suitable guide star with your own eyepiece and replaced it with the guide camera, the display immediately shows the guide star. It's a subdued white-on-red display to help maintain your night vision. The screen is divided into two zones, the left half displays the various menus and text data and the right half shows a real-time 1-bit image of the star in the field of view"...."Price has always been an issue with other stand-alone auto-guiders - you previously had to spend a similar amount to a PC and a conventional guide camera combined. But the SynGuider changes all that: what we have here is a complete system that costs less than many conventional guide cameras on their own" SKY AT NIGHT MAGAZINE
"It's simply brilliant in both use and design, and I think it should find its way into almost every DSLR imagers', and indeed maybe some regular CCD users' arsenal of kit" ASTRONOMY NOW MAGAZINE

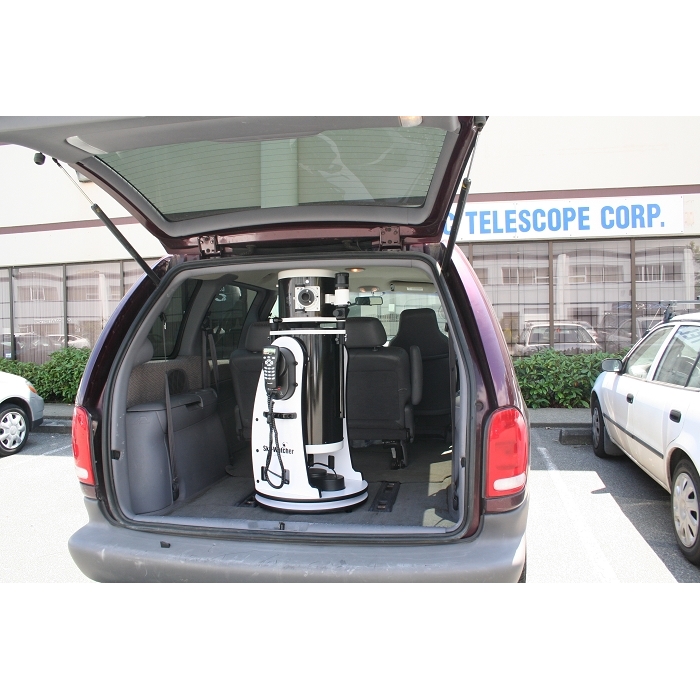

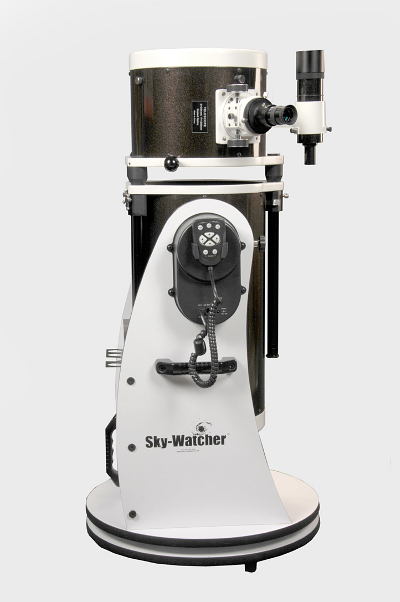

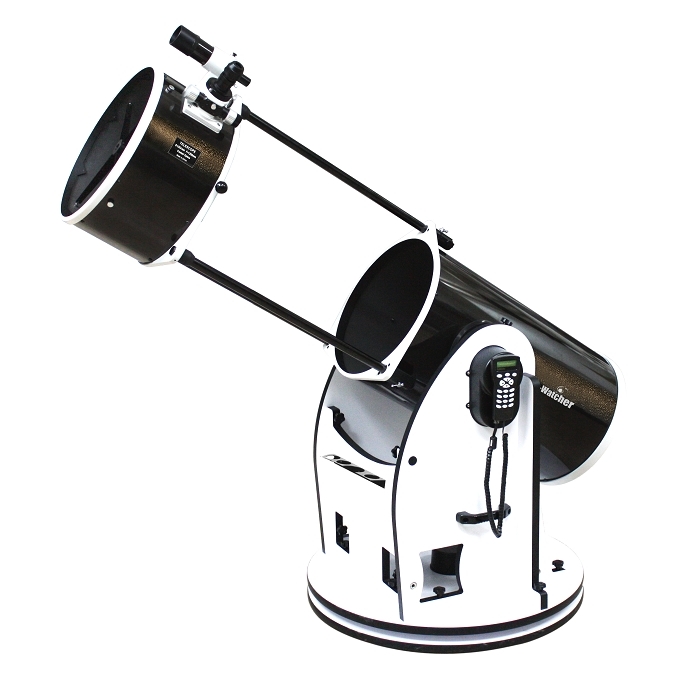

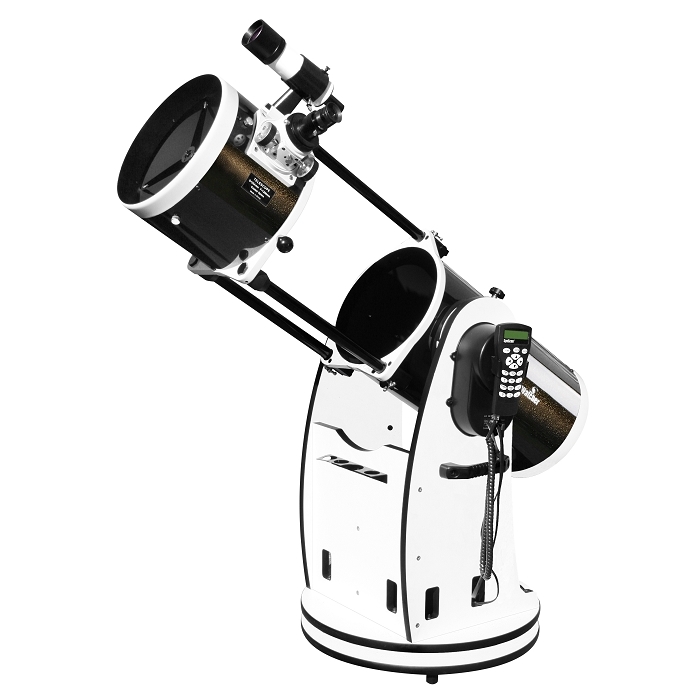

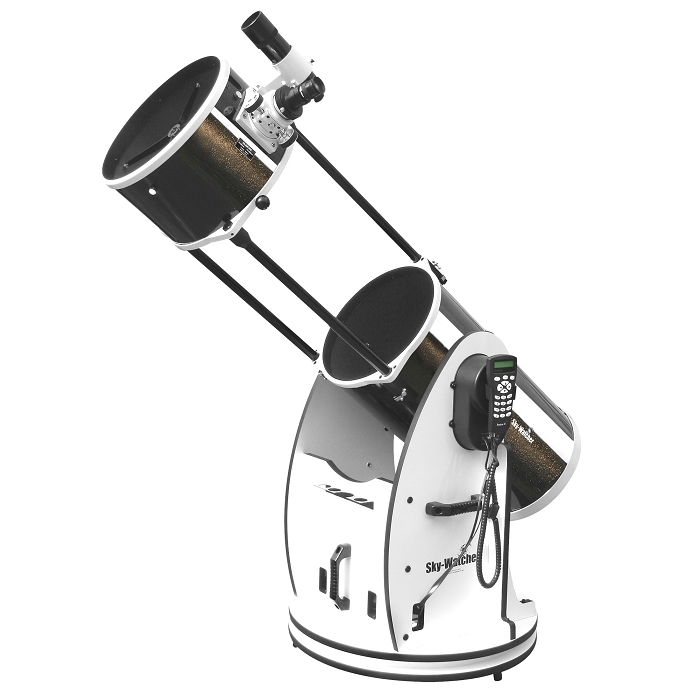

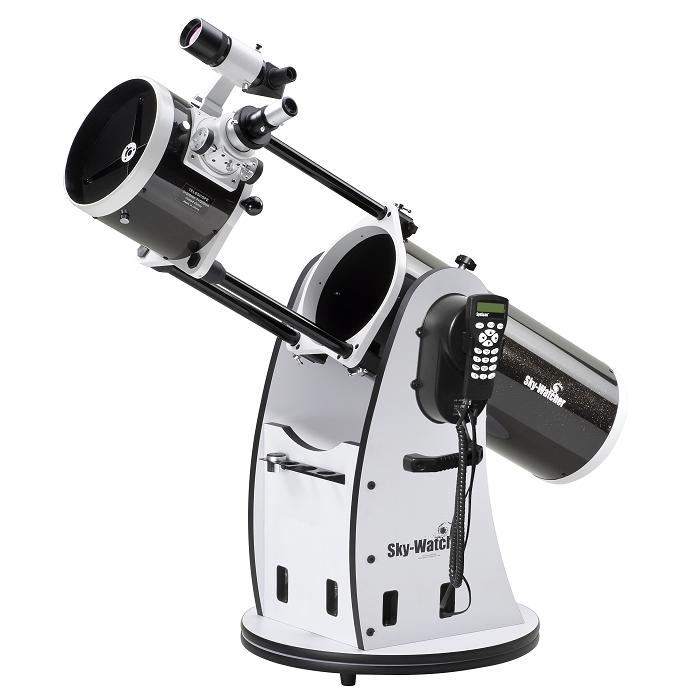

Combining the power of a large optical tube, the extreme portability of the patented collapsible FlexTube design and SynScan computerised Go-To technology, the new Skyliner FlexTube Synscan Dobsonians bring over 42,900 celestial objects right in front of your eyes, and automatically tracks them as they move across the sky - its as easy as a walk in the park!

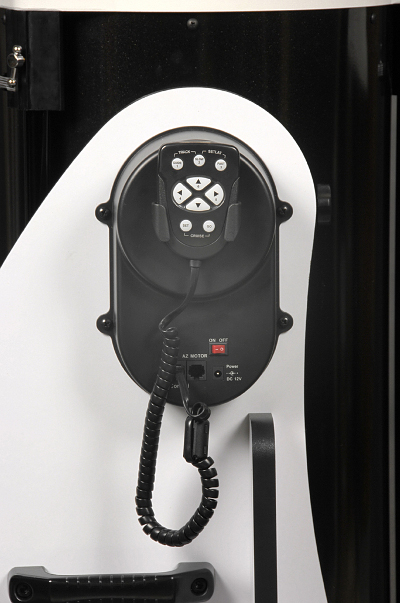

The patented dual-encoder design allows you to manually move the telescope anytime and to anywhere you wish - with no need for realignment. Slewing to an object on the opposite side of the night sky no longer feels like watching a kettle boil. Simply push the tube close to the object and let the computer do the rest of the work.

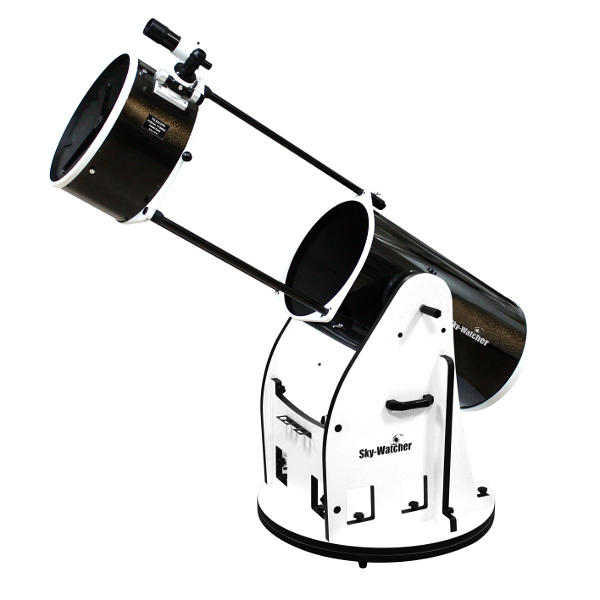

Combining the power of a large optical tube, the extreme portability of the patented collapsible FlexTube design and SynScan computerised Go-To technology, the new Skyliner FlexTube Synscan Dobsonians bring over 42,900 celestial objects right in front of your eyes, and automatically tracks them as they move across the sky - its as easy as a walk in the park!
The patented dual-encoder design allows you to manually move the telescope anytime and to anywhere you wish - with no need for realignment. Slewing to an object on the opposite side of the night sky no longer feels like watching a kettle boil. Simply push the tube close to the object and let the computer do the rest of the work.
For amateur astronomers seeking superior equatorial control and the ease of a precision computerized GOTO system, the NEQ6 PRO SynScanTM is your answer. The Sky-Watcher NEQ6 PRO SynScanTM is designed with the novice user in mind. With the user-friendly pushbutton hand control, locating and viewing the treasures of the night sky becomes as easy as a walk in the park. The hand control allows you to point the telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to over 42,000 + objects. Even an inexperienced astronomer can master its variety of features in a few observing sessions. The NEQ6 SynScanTM also comes with features that advanced astronomers can appreciate:
Positioning Accuracy up to 1 arc minute.
Accuracy enhanced by software collimation error (mount mechanical error) compensation.
Stepper motors with 1.8° step angle and 64 micro steps driven.
Slewing speed up to 3.4°/sec (800X).
Auto Guider Interface for astro-photography.
Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
Object database containing complete M, NGC, and IC catalogues.
Minimal vibration for steady long-exposure photography.
Specifications
Power Supply Required: 12 VDC 2Amp Tip positive (not supplied)
Available for easily upgrading the standard EQ6 mount for computerised GoTo capabilities. Comprises GoTo handset, Stepper Motors for Dec and R.A.Drives, Replacement Control Panel / Motor Board, Hand Control Cable, Cable Clamp, Hand Control Holder and Rechargable Power Supply Unit required - not supplied.
EQ3 PRO SynScan Computerised GO-TO Equatorial Mounting System
(Supplied with aluminium TRIPOD)
Sky-Watcher offers simple solutions for users who would like to attach their smaller telescope to a convenient computerized system but do not wish to deal with the weight of the HEQ5 or EQ6 mounts. The EQ3 PRO SynScanTM mounts use the same Go-To system found in the HEQ5 and EQ6 PRO SynScanTM. It allows you to point the telescope at a specific object or even tour the skies at the touch of a button. Its extensive database includes a massive 42,900+ night sky objects.
The EQ3 PRO SynScanTM mount is a perfect instrument for novice visual observers and imagers to enjoy astronomy with minimal setup time and in-depth knowledge of the night sky.
PLEASE NOTE: The Motor Control box supplied (situated left of handset in above picture) is designed to clamp onto 1.75” Diameter Stainless Steel tripod legs. In this instance the Motor Control Box should be attached with either cord or Velcro (User Supplied)
Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation.
Stepper motors with 1.8° step angle and 64 micro steps driven.
Slewing speed up to 3.4°/sec (800X).
Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
42,900+ Object database containing complete Messier, NGC, and IC catalogues.
Periodic Error Correction.
PC compatibility.
Upgradeable hand control via internet download.
Maximum Payload e.g. Explorer-150P/PL Reflector or Evostar-120 Refractor
Supplied with Aluminium Tripod & Accessory Tray
"I wanted something that could replicate the functionality and ease of use of my EQ6 PRO mount, but packaged in an ultra-portable form....GOTO accuracy was simply amazing for a mount of this size and cost. It hit every one of the ten or so targets with the 26mm eyepiece....has the potential to revolutionise the portable astronomy market. Whilst other products exist for the travelling astronomer, this one seems to have it all" Astronomy Now Magazine

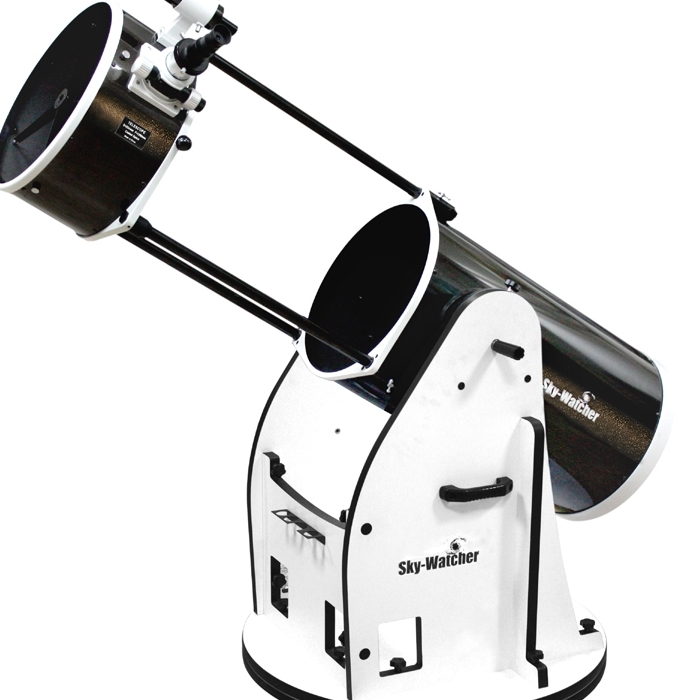

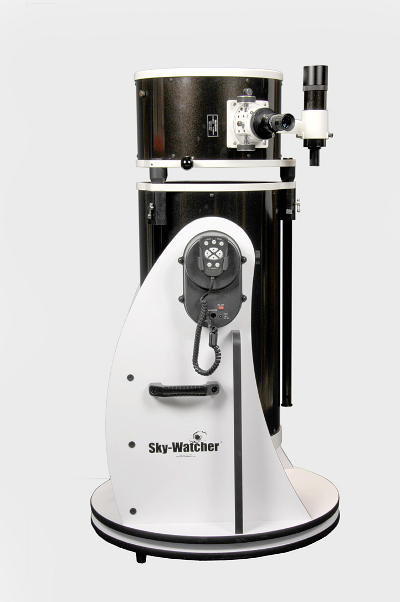

Combining the power of a large optical tube, the extreme portability of the patented collapsible FlexTube design and SynScan computerised Go-To technology, the new Skyliner FlexTube Synscan Dobsonians bring over 42,900 celestial objects right in front of your eyes, and automatically tracks them as they move across the sky - its as easy as a walk in the park!
The patented dual-encoder design allows you to manually move the telescope anytime and to anywhere you wish - with no need for realignment. Slewing to an object on the opposite side of the night sky no longer feels like watching a kettle boil. Simply push the tube close to the object and let the computer do the rest of the work.
Combining the power of a large optical tube, the extreme portability of the patented collapsible FlexTube design and SynScan computerised Go-To technology, the new Skyliner FlexTube Synscan Dobsonians bring over 42,900 celestial objects right in front of your eyes, and automatically track them as they move across the night sky - its as easy as a walk in the park!
The patented dual-encoder design allows you to manually move the telescope anytime and to anywhere you wish - with no need for realignment. Slewing to an object on the opposite side of the night sky no longer feels like watching a kettle boil. Simply push the tube close to the object and let the computer do the rest of the work.
Combining the power of a large optical tube, the extreme portability of the patented collapsible FlexTube design and SynScan computerised Go-To technology, the new Skyliner FlexTube Synscan Dobsonians bring over 42,900 celestial objects right in front of your eyes, and automatically track them as they move across the night sky - its as easy as a walk in the park!
The patented dual-encoder design allows you to manually move the telescope anytime and to anywhere you wish - with no need for realignment. Slewing to an object on the opposite side of the night sky no longer feels like watching a kettle boil. Simply push the tube close to the object and let the computer do the rest of the work.

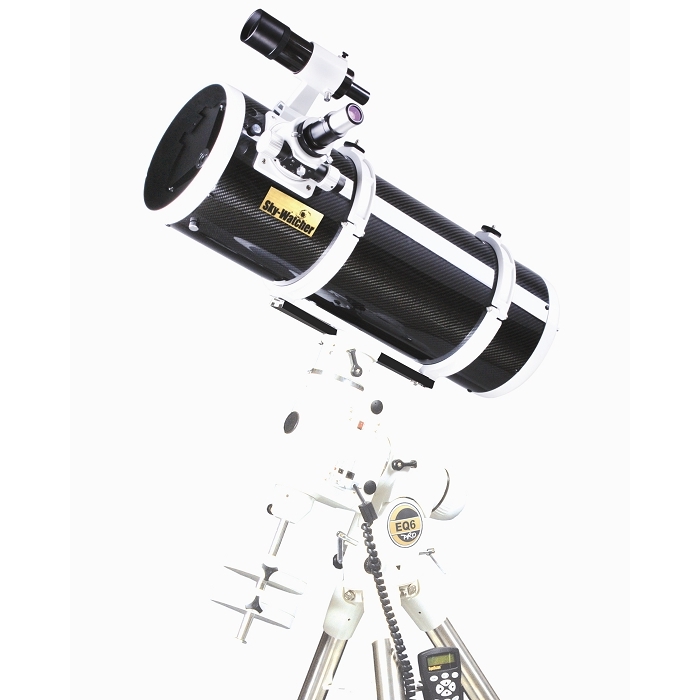

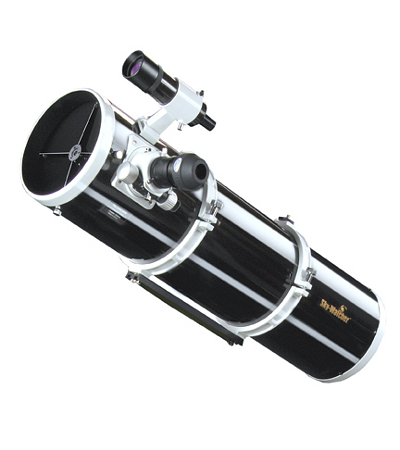

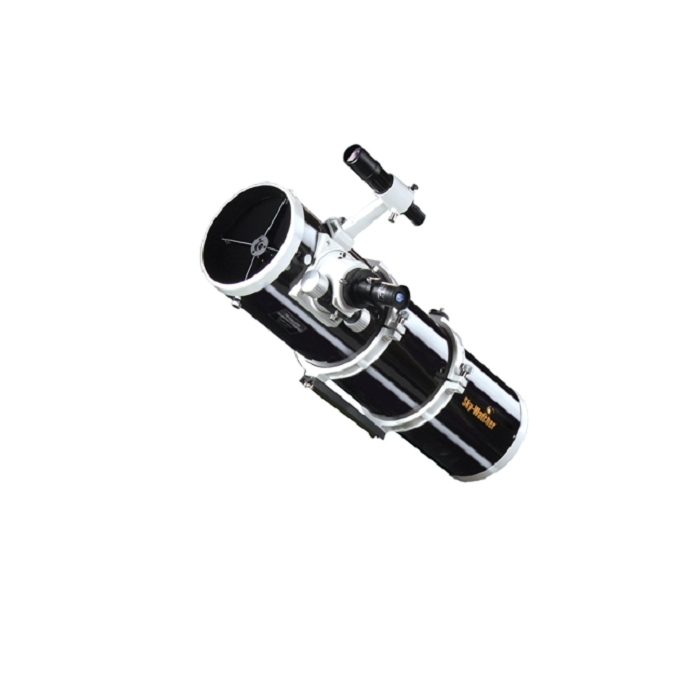

EXPLORER-150PDS 150mm (6”) f/5 Parabolic Dual-Speed Newtonian Reflector OTA
OPTIMISED FOR PRIME FOCUS ASTRO-PHOTOGRAPHY
The new Sky-Watcher EXPLORER-150PDS Newtonian Reflector incorporates the same superb mirror-set as the Explorer-150P Black Diamond Series, but with two significant advantages. A Dual-Speed 10:1 ratio focuser is now included for excellent focusing precision. Also the tube length has been slightly shortened to optimise performance for prime-focus photography. Even better performance for astro-photography and visual use can be achieved when used in combination with Sky-Watcher’s Newtonian coma corrector (Prod.Code 20233).
TAL-125 APOLAR APO (OTA) 125MM (4.94") f/7.5 APOCHROMATIC REFRACTOR TELESCOPE
The TAL-125 APOLAR is designed for both visual and astrophotographic use and provides stunning high-resolution images virtually free of false colour.

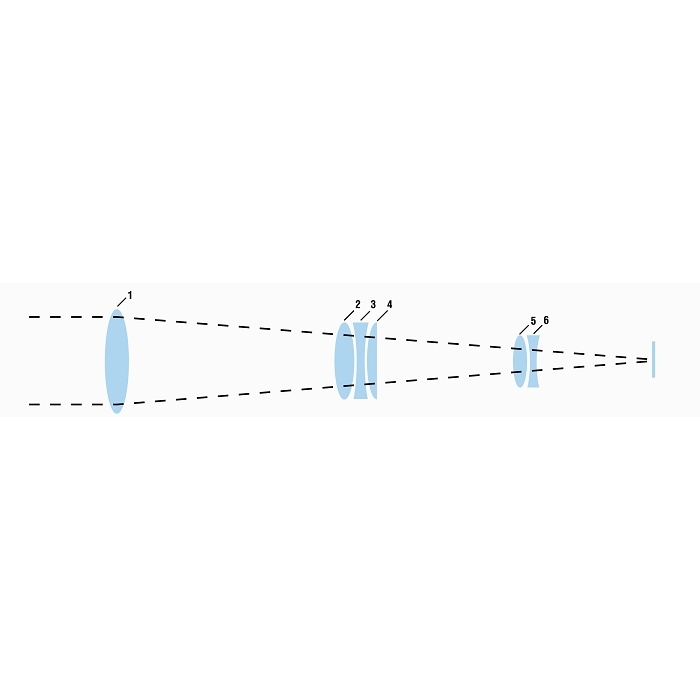

The unique TAL-125 APOLAR objective lens system comprises of six lens elements in three groups.
The first is a single biconvex lens - the second consists of a biconvex lens , biconcave lens and converging-meniscus lens - the third one consists of biconvex lens and biconcave lens. Two types of optical glass are used in their construction

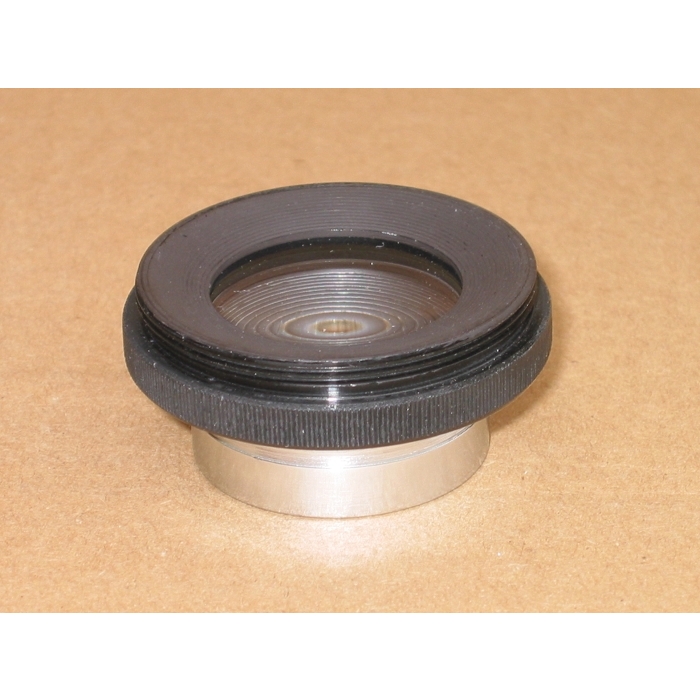

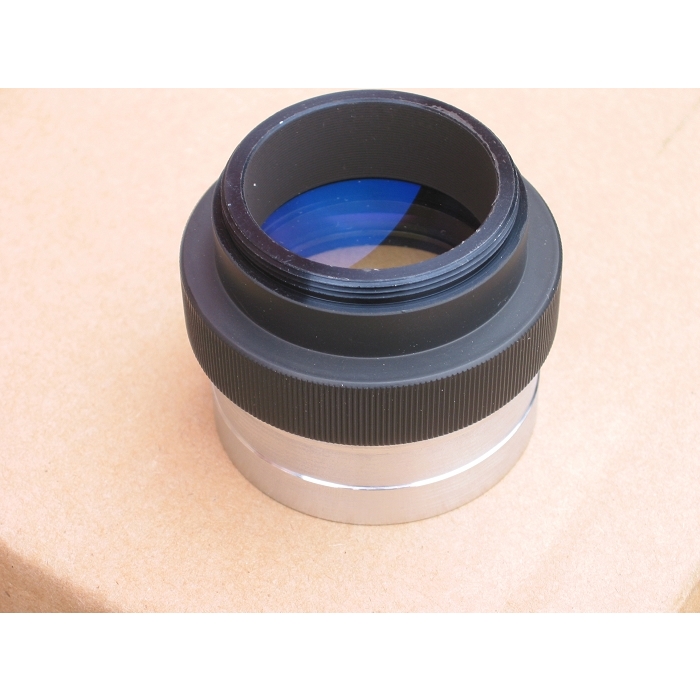

F/6 FOCAL REDUCER/CORRECTOR FOR TAL-250K (2" FORMAT)
The focal reducer is intended for reducing the focal distance and correction of field aberrations of the objective lens of the TAL-250K Klevsov-cassegrain telescope.
It reduces the exposure time when photographing deep-space objects. The focal reducer is installed into the focusing tube with a bore diameter of 2".
F/6 FOCAL REDUCER/CORRECTOR FOR TAL-200K (1.25" FORMAT)
The focal reducer is intended for reducing the focal distance and correction of field aberrations of the objective lens of the TAL-200K Klevsov-cassegrain telescope.
It reduces the exposure time when photographing deep-space objects. The focal reducer is installed into the focusing tube with a bore diameter of 1.25".
DUAL-SPEED 2" CRAYFORD FOCUSER For Explorer 150/200/250/300P Newtonian Reflectors
Designed to retro-fit to the Explorer-150/200/250/300P Newtonian Reflectors originally supplied with a 2" (two-inch) single speed focuser. Gear Ratio 10:1.
MICROLAB-1000 DIGITAL BINOCULAR LABORATORY MICROSCOPE
DISPLAY AND CAPTURE LIVE IMAGES DIRECTLY TO YOUR PC!!
Full-sized laboratory standard instrument incorporating a 1.3mp (1280x1024 pixels) built-in CMOS digital camera. Display and capture live images directly to your PC with ease, via a USB 2.0 cable using user-friendly ScopeImagePlus application software.
The camera can be connected and disconnected freely, and when the camera is not in use, the instrument operates like a conventional microscope.
Ideal for use in schools, colleges and professional laboratories over a wide range biological, medical, veterinary, bacteriological and agricultural applications
Standard Specifiaction:
Magnification x40-x1000 (x1600 achievable by using optional x16 eyepieces)
Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
Optimised for all Sky-Watcher fast-ratio f/5 Newtonian Reflectors / Dobsonians, with 2” focuser. Delivers stunning wide-field views with pinpoint stars to the edge of the field. Magnification remains unaltered. Supplied complete with necessary adaptors for visual use. For imaging use with a DSLR camera, a suitable M48x0.75 adaptor is required to match your camera. Sky-Watcher manufactured Canon and Nikon M48x0.75 adaptors are available (prod codes 20237 & 20238).

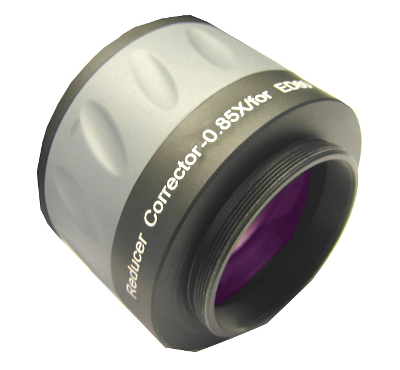

0.85x Focal Reducer/Corrector for Evostar-120ED DS-PRO

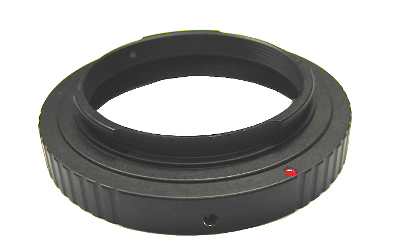

Designed for serious Astro-Imagers. Optimised for the Evostar-120ED PRO, this superb quality accessory effectively reduces the telescope’s focal length by a factor of 0.85x and provides much improved field-edge correction. Use in conjunction with Sky-watcher’s M48 Canon or Nikon T-ring adaptors (product codes 20237 & 20238).
Prod. Code
0.85x Focal Reducer/Corrector for Evostar-120ED DS-PRO
0.85x Focal Reducer/Corrector for Evostar-100ED DS-PRO
Designed for serious Astro-Imagers. Optimised for the Evostar-100ED PRO, this superb quality accessory effectively reduces the telescope’s focal length by a factor of 0.85x and provides much improved field-edge correction. Use in conjunction with Sky-watcher’s M48 Canon or Nikon T-ring adaptors (product codes 20237 & 20238).
Prod. Code
0.85x Focal Reducer/Corrector for Evostar-100ED DS-PRO
0.85x Focal Reducer/Corrector for Evostar-80ED DS-PRO
Designed for serious Astro-Imagers. Optimised for the Evostar-80ED PRO, this superb quality accessory effectively reduces the telescope’s focal length by a factor of 0.85x and provides much improved field-edge correction. Use in conjunction with Sky-watcher’s M48 Canon or Nikon T-ring adaptors (product codes 20237 & 20238).
Prod. Code
0.85x Focal Reducer/Corrector for Evostar-80ED DS-PRO

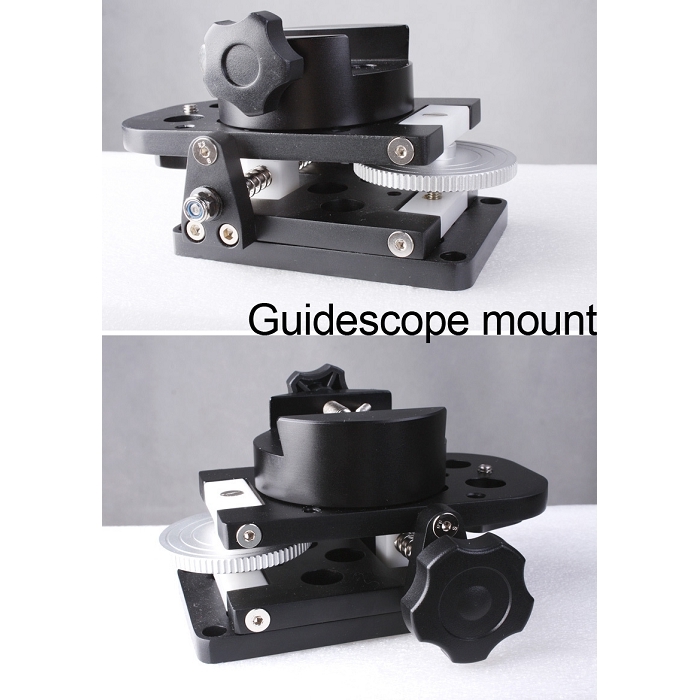

Features full alt-azimuth control for quick and precise alignment of guidescope with main telescope. Standard Sky-Watcher/Vixen dovetail saddle plate. Fits onto Sky-Watcher tube ring via camera mounting bracket.

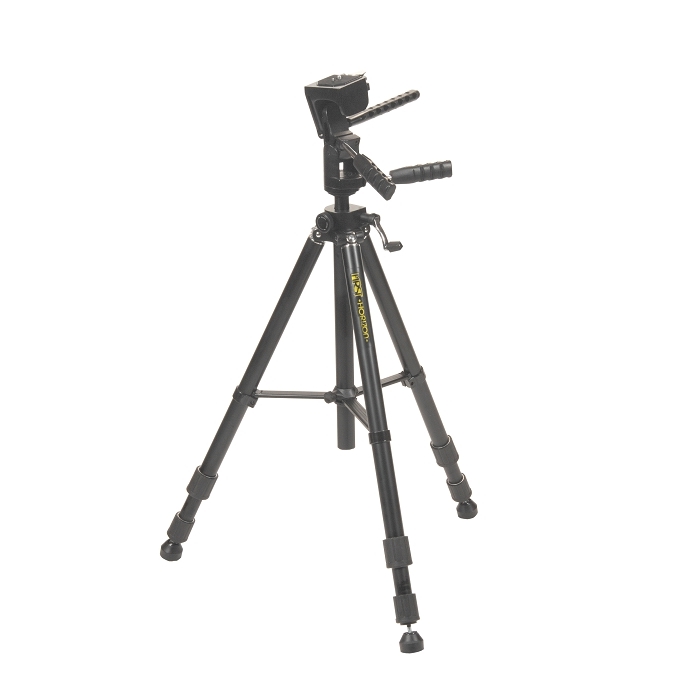

Exceptionally robust camera tripod offering excellent stability, for use up to professional level. As with the 8115 model, the tripod can be used with equal success indoors or in the field, by utilising its self-levelling rubber feet, or by employing it's built-in metal spikes.
Maximum Height (fully extended): 180cm
Minimum Height (retracted): 78cm
Geared 31cm centre column with lock and brace
360° panning, -75° to +45° vertical adjustment
Tilting photographic head allows portrait photgraphy
Bubble level for accurate levelling
3-Section heavy-duty tubular aluminium legs
Heavy-duty twist-type leg locks with rubber grips
Self-levelling rubber feet with screw-out metal spikes
Weight 3.97kg
Spare Quick Release Plate Available (product code 50895)

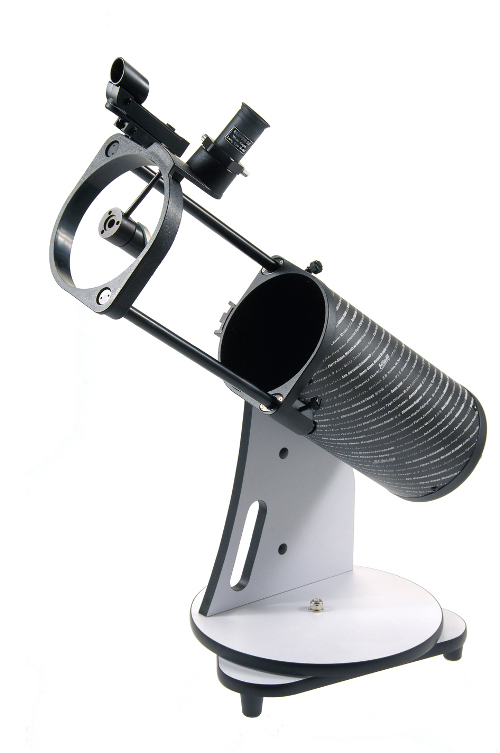

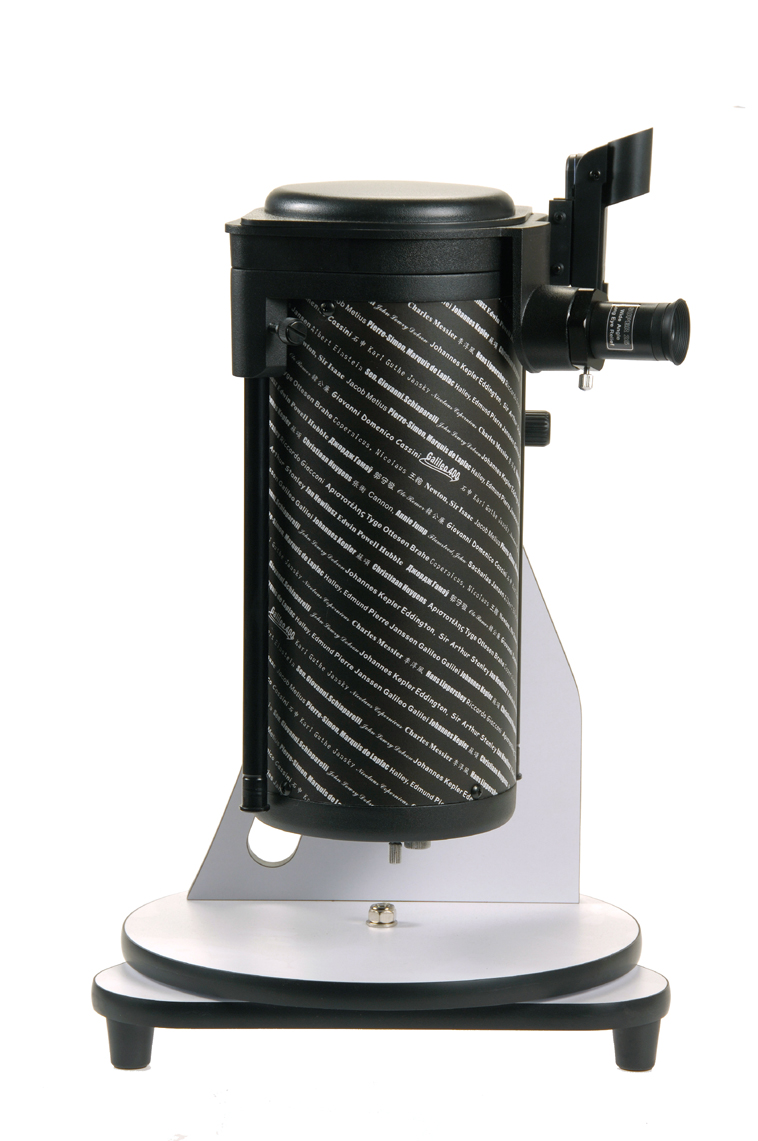

The Heritage-130P has been specially designed to celebrate the International Year of Astronomy and the 400th Anniversary of Galileo’s first telescope. This is not only a highly functional precision optical instrument but also a beautiful collector’s piece and ideal gift. The telescope tube is adorned with the names of many famous figures that have made significant contributions to the advancement of astronomy over this 400yr period, including Galileo Galilei himself.
Housing the same superb Parabolic Primary Mirror as our highly-renowned Explorer-130P, this telescope is an excellent and capable all-rounder which will provide wonderful views of both the Moon & Planets as well as Deep-Sky Objects. The collapsible patented FlexTube™ system has been incorporated making it even more convenient to transport and store. The uncomplicated manually operated Dobsonian alt-azimuth mount makes it a superb, highly portable, grab-and-go system. The complete telescope & mount comes fully assembled straight out of the box. Supplied in presentation Giftbox.
EXPLORER-250PDS 254mm (10") f/4.7 Parabolic Dual-Speed Newtonian Reflector OTA
The new Sky-Watcher EXPLORER-250PDS Newtonian Reflector incorporates the same superb mirror-set as the Explorer-250P Black Diamond Series, but with two significant advantages. A Dual-Speed 10:1 ratio focuser is now included for excellent focusing precision. Also the tube length has been slightly shortened to optimise performance for prime-focus photography.
Even better performance for astro-photography and visual use can be achieved when used in combination with Sky-Watcher’s Newtonian coma corrector (Prod.Code 20233)
EXPLORER-200PDS 200mm (8") f/5 Parabolic Dual-Speed Newtonian Reflector OTA
The new Sky-Watcher EXPLORER-200PDS Newtonian Reflector incorporates the same superb mirror-set as the Explorer-200P Black Diamond Series, but with two significant advantages. A Dual-Speed 10:1 ratio focuser is now included for excellent focusing precision. Also the tube length has been slightly shortened to optimise performance for prime-focus photography.
Even better performance for astro-photography and visual use can be achieved when used in combination with Sky-Watcher’s Newtonian coma corrector (Prod.Code 20233)
HyperFlex-8E 7.5mm-22.5mm High-Performance Zoom Eyepiece (1.25 The Flexibility of a Set of Quality Eyepieces, All-In-One!!
A high-performance zoom eyepiece of top quality construction, providing an extra flat field of view and crisp, clear distortion-free images. Features a continuous focal length of 7.5mm to 22.5mm and a corresponding wide apparent field of view of 66°-42°. For convenience, focal length positions of 7.5, 12, 17 & 22.5mm are engraved on the eyepiece barrel. The zoom is super-smooth to operate and a pleasure to use. The generous eye relief varies from 18mm-19.5mm.
Constructed with 8 lens elements in 5 separate groups. This exotic eyepiece model features a large eye-lens element and soft twist-up rubber eyecup for comfortable viewing. Fully broadband multi-coated, features blackened lens edges, internal baffling and is parfocal. Beautifully finished in high-gloss anodized aluminium with knurled rubber grips. Threaded to accept standard 1.25" filters. Weight approx 250g.

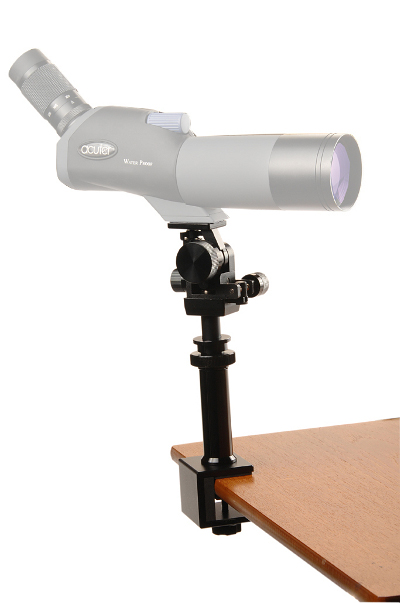

A useful device for use with spotting scopes (and binoculars, with an additional L-Type adaptor code 308 or 309). Designed to clamp to a Table, Window Sill or any other even horizontal surface with a thickness up to 36mm. Incorporates a standard 1/4-20 Tripod Bush. Features Micro-elevation and azimuth adjustments. Gloss black anodised finish.

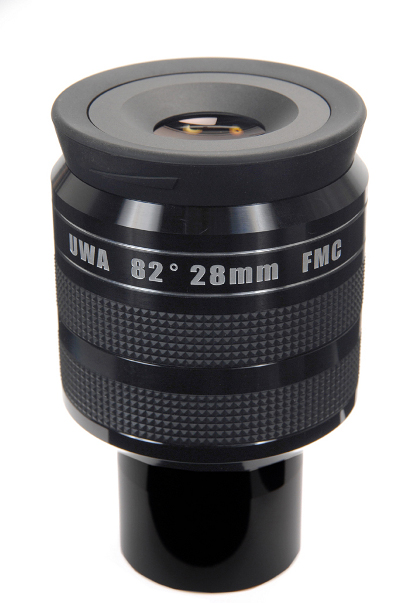

The show-stopping Nirvana™ 2” 28mm ultra wide angle eyepiece is a heavyweight in more ways than one and will certainly draw attention from fellow observers!! Offers an incredible jaw-dropping viewing experience to rival some of the leading premium eyepieces on the market, but at an extremely competitive price. The huge 82 degree apparent field of view, superb field-edge correction and excellent contrast combine to provide a wonderfully immersive and memorable observational adventure. Works superbly in telescopes of all focal lengths. Constructed with 6 lens elements in 4 separate groups. This exotic eyepiece model features a large eye-lens element and soft twist-up rubber eyecup for comfortable viewing. Fully broadband multi-coated, features blackened lens edges, internal baffling and is parfocal. 18mm eye relief . Beautifully finished in high-gloss anodized aluminium with knurled rubber grips. Threaded to accept standard 2” filters. Weight approx 1000g.
Prod. Code
Nirvana 28mm UWA-82 degree 2" High Performance Eyepiece

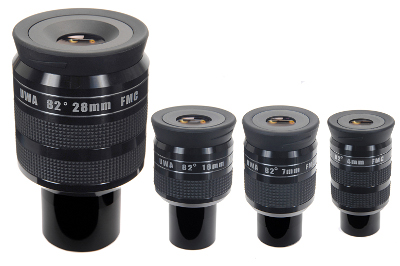

These top quality ultra wide angle 1.25” eyepieces offer an incredible jaw-dropping viewing experience to rival some of the leading premium eyepieces on the market, but at an extremely competitive price. The huge 82 degree apparent field of view, superb field-edge correction and excellent contrast combine to provide a wonderfully immersive and memorable observational adventure. Work superbly in telescopes of all focal lengths. All models are constructed with 7 lens elements in 4 separate groups. These exotic eyepiece models feature large eye-lens elements and soft twist-up rubber eyecups for comfortable viewing. All models are fully broadband multi-coated, feature blackened lens edges, internal baffling and are parfocal. 12mm eye relief on all models. Beautifully finished in high-gloss anodized aluminium with knurled rubber grips. Threaded to accept standard 1.25” filters. Weight approx 200g.
Prod. Code
Nirvana 4mm UWA-82degree 1.25” High Performance Eyepiece
20219
SRP £ 139.00
Nirvana 7mm UWA-82 degree 1.25” High Performance Eyepiece
20220
SRP £ 139.00
Nirvana 16mm UWA-82 degree 1.25” High Performance Eyepiece
20221
SRP £ 149.00
Nirvana 28mm UWA-82 degree 2” High Performance Eyepiece
The prices listed on this website are U.K. suggested retail prices (SRP) including VAT for reference purposes only
and that prices may vary from dealer to dealer. Please contact your nearest stockist for firm pricing information.
As we are purely a distributor, we regret we are unable to sell directly to the public.
Specifications subject to variation due to later production changes. E&OE.
Optical Vision Ltd
Unit 3, Woolpit Business Park, Woolpit, Bury St. Edmunds, Suffolk IP30 9UP, England
Email: info@opticalvision.co.uk
