A high quality instrument of robust, reliable metal construction and excellent optical performance. Highly recommended for Primary Science Education and Field Study Centres (officially approved by the Royal Microscopical Society for use in primary schools). Extremely simple to use, the PM-1 is ideal for the examination of everyday objects in fascinating yet understandable detail. The anti-tamper student proof design includes locked-on eyepiece & stage clips and a slip clutch on the focus movement. Also an extremely useful routine inspection microscope for use in industrial applications.
Standard Specification
- Fixed Magnification x20
- x10 widefield eyepiece (locked on)
- x2 achromatic objective
- Field of view 9.5mm
- Working distance 81mm
- Monocular head inclined 45 degrees & rotatable 360 degrees for convenient viewing
- Upright/erect image
- Precise, smooth-action rack & pinion focusing
- Black & White reversible Stage Plate
- With Stage Plate removed the microscope can focus through base aperture to view larger objects
- Complete with Dust Cover
- Supplied in polystyrene pack
- Dimensions 145x110x260mm
- Weight 1.2kg

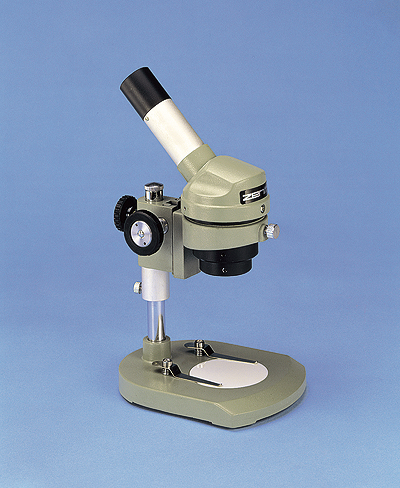

| x20 Primary Inspection Microscope |
PM-1 |
SRP £ 59.00 |
