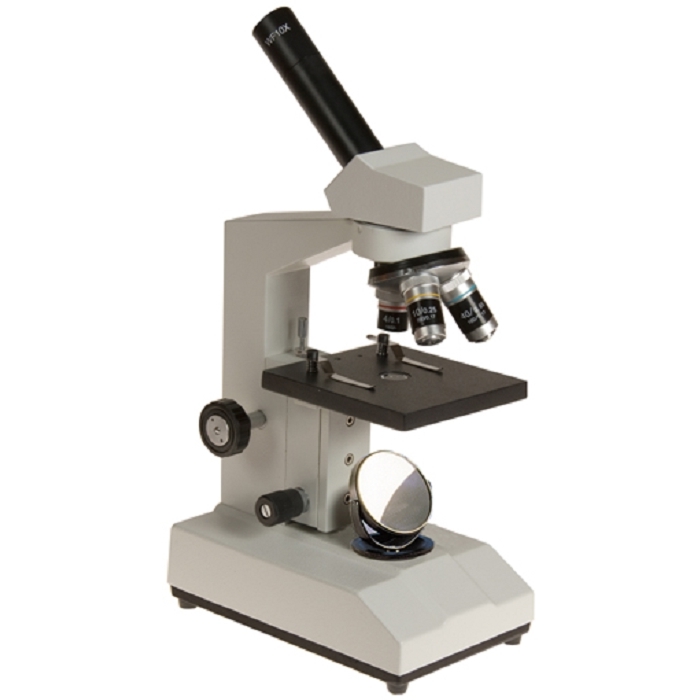

Zenith ULTRA-400M Advanced Student Microscope
Ideal for ordinary and advanced level biology studies. The Zenith ULTRA-400 series are purpose built teaching instruments finished to a very high standard, combining excellent optical performance and a very reliable, modern, user-friendly design with a mechanical construction designed to withstand the rigours or everyday heavy classroom use. All models feature high quality DIN standard optics, anti-tamper safety features included locked on eyepiece and stage clips, slip clutch on the coarse focus movement to prevent over focusing and an adjustable focus stop to prevent damage to glass microslides and objective lenses. Highly recommended.
Standard Specification
- Magnification Range x40, x100, x400
- DIN Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65) (R=retractable)
- x10 widefield eyepiece with pointer (18mm field)
- Stage Condenser (N.A. 0.65)
- Rotating 5-hole disc diaphragm
- Triple Objective Turret
- Illumination via plano concave mirror
Related Manuals
| Advanced Student Microscope |
ULTRA-400M |
SRP £ 109.00 |
| |
x5 DIN eyepiece |
WF-5 |
SRP £ 25.00 |
| |
x16 DIN widefield eyepiece |
WF-16 |
SRP £ 29.00 |
| |
x10 DIN widefield measuring eyepiece |
ME-10 |
SRP £ 35.00 |
| |
Mechanical Stage |
CT-11 |
SRP £ 32.00 |
| |
Teaching Head |
VA-2 |
SRP £ 43.00 |
| |
CCTV Adaptor (Mag. X2) |
VA-2TV |
SRP £ 99.00 |
