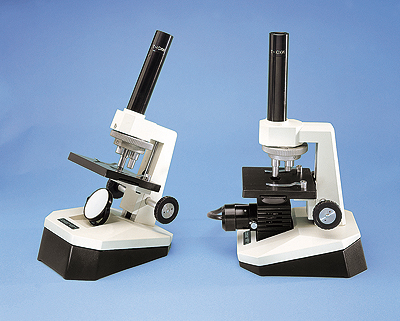

Zenith T-70 Series Teaching Microscopes
The Zenith T-70 Series are purpose built school microscopes of high optical quality and particularly robust die-cast construction. Two identical models are available with different illumination systems. Maximum magnifications of x200 ensure ease of use and makes them ideal instruments for use in Primary, Middle and Lower Secondary Schools. Features are ingenious base design, which when rotated, instantly converts the microscope from vertical to inclined viewing mode. Anti-tamper safety features include locked on eyepiece & objective lenses, locked on stage clips, slip clutch on the focus movement to prevent over focusing and focus stop to prevent damage to glass microslides and objective lenses.
Standard Specification
- T-70M Illumination via Plano Concave Mirror
- T-70L With locked on 230v 6w substage illuminator
General Features (both models):-
- Magnification Range x40, x100, x200
- x10 widefield eyepiece with pointer
- Achromatic Objectives x4, x10, x20R (R=retractable)
- Rotating 5-hole disc diaphragm
- Single, precise smooth-action focus control for easy focusing
- Stage measures 92x92mm
- Triple Objective Turret
- Dimensions 160x120x290mm
- Complete with dust cover
- Supplied in polystyrene pack
- Weight approx 1.5kg
| Teaching Microscope |
T-70M |
SRP £ 59.00 |
| Teaching Microscope |
T-70L |
SRP £ 79.00 |
| Replacement 230v 6w Bulb |
SB-6 |
SRP £ 2.80 |
