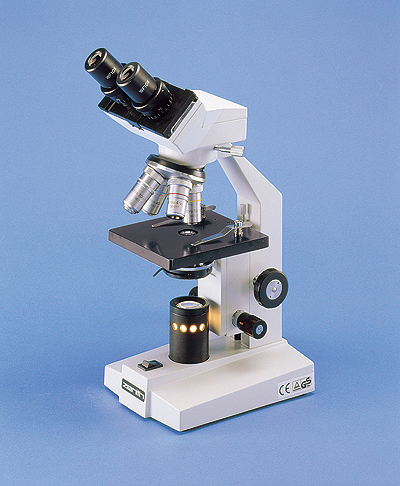

Zenith BM-100FL Binocular College Microscope
A high quality binocular microscope designed to meet the needs of the more advanced biology student at an economical price. Combines excellent optical performance and a robust, reliable ergonomic design. Anti-tamper safety features include locked on stage clips, slip clutch on the coarse focusing movement and an adjustable focus stop.
Standard Specification
- Magnification Range x40, x100, x400,1000
- DIN Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65),100R (1.25) oil immersion (R=retractable)
- Paired x10 widefield eyepiece with pointer (18mm field)
- ABBE Condenser (N.A. 1.25) in spiral focusing mount with iris diaphragm
- Quadruple Objective Turret with positive click stops
- Built in 230v 20w illumination (colour corrected with daylight blue filter)
- Separate smooth action Coarse & Fine Focusing controls
- Dioptric adjustment provided on both eyepiece tubes
- Binocular head inclined 45 degrees and rotatable through 360 degrees for conveneint viewing
- Full Inter-pupillary adjustment
- Permanently horizontal stage
- Supplied in Polystyrene Pack with Dust Cover
- Dimensions 175x130x350mm
- Weight 4kg
| Binocular College Microscope |
BM-100FL |
SRP £ 249.00 |
| |
x5 DIN eyepiece |
WF-5 |
SRP £ 25.00 |
| |
x16 DIN widefield eyepiece |
WF-16 |
SRP £ 29.00 |
| |
x10 DIN widefield measuring eyepiece |
ME-10 |
SRP £ 35.00 |
| |
Mechanical Stage |
CT-11 |
SRP £ 32.00 |
| |
Replacement 240v 20w bulb |
SB-20 |
SRP £ 2.65 |
