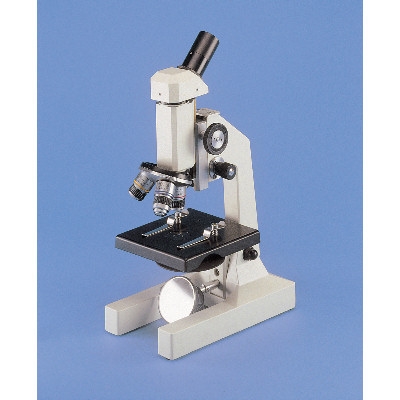

ATM-400 Educational Microscope Series
Zenith ATM-400 Series Educational Microscopes

ATM-400 Educational Microscope Series

Purpose built teaching instruments of modern design & robust construction ideal for GCSE biology studies. Excellent optical performance is provided by DIN standard optics. Two identical models are available with a choice of either a plano-concave mirror or 230v 15w illumination. Anti-tamper safety features essential for school use include locked-on eyepiece and stage clips, slip-clutch on the coarse focus movement to prevent over-focusing and an internal focus-stop to prevent damage to glass microslides and objective lenses.

Standard Specification

  • ATM-400M Illumination via Plano Concave Mirror
  • ATM-400L With locked on 230v 6w substage illuminator

General Features (both models)

  • Magnification x40, x100, x400, x640* (*x640 magnification achievable by using optional x16 flatfield eyepiece)
  • DIN standard Parfocal Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65) (R=retractable)
  • x10 widefield eyepiece with pointer
  • Stage Condenser (N.A. 0.65)
  • Rotating 5-hole disc diaphragm
  • Separate coarse & fine focusing controls
  • Rack & Pinion focusing
  • Monocular head rotable 360 degrees & inclined 45 degrees for convenient viewing with stage horizontal
  • Microscope limb can be inclined if required
  • Triple Objective Turret
  • Brass focusing slides
  • Dimensions 220x120x305mm
  • Supplied in polystyrene pack with dust cover
  • Weight 2.9kg




  Prod. Code
Educational Microscope   ATM-400M  SRP £ 99.00
Educational Microscope   ATM-400L  SRP £ 119.00


Accessories Prod. Code Price
   x16 Flatfield Eyepiece   AM-16  SRP £ 17.00
   230v 15w Substage Illuminator (for ATM-400M only)   MSL-6  SRP £ 26.50
   Replacement 230v 15w Bulb   SB-4  SRP £ 2.20

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

<PREVIOUS PAGE>

The prices listed on this website are U.K. suggested retail prices (SRP) including VAT for reference purposes only
and that prices may vary from dealer to dealer. Please contact your nearest stockist for firm pricing information.
As we are purely a distributor, we regret we are unable to sell directly to the public.
Specifications subject to variation due to later production changes. E&OE.
