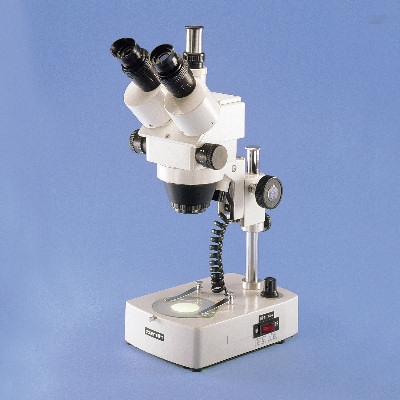

Zenith STZ-4500
x7-x45 Zoom Stereoscopic Microscope
High performance full sized professional zoom stereo microscope ideal for use over a wide range of industrial, medical & educational applications. Features x7-x45 continuous zoom facility providing delightfully sharp, crisp, upright stereoscopic images. The magnification can be increased up to x180 with addition of the optional eyepieces and supplementary objectives that are available.
Standard Specification
- Magnification x7 -x45
- (Magnification of x3.5 -x180 achievable by upgrading with the optional eyepieces & supplementary objective lenses listed below)
- Paired widefield eyepieces x10
- Zoom Objective magnification ratio x0.7 -x45
- Trinocular Head(STZ-4500)
- Working distance 95mm
- Field of view 4.4 - 28.6mm
- 230v/6v 20w halogen incident illumination (positionable)
- 230v 6v fluorescent transmitted illumination
- Binocular head inclined 45 degrees, rotatable 360 degrees
- Full interpupillary & dioptric adjustment provided
- Rack and pinion focussing
- Stereo head height adjustable on pillar to accommodate specimens of varying sizes
- Supplied with dust cover
- Dimensions 250x160x410mm
- Weight 6.5kg
| Trinocular Zoom Stereo Microscope |
STZ-4500 |
SRP £ 449.00 |
| |
Replacement 6v 20w Halogen Bulb |
SB-25 |
SRP £ 5.70 |
| |
x15 Widefield Eyepiece (2 req'd) |
WF-15 |
SRP £ 25.50 |
| |
x20 Widefield Eyepiece (2 req'd) |
WF-20 |
SRP £ 25.50 |
| |
x0.5 Supplementary objective |
SL-1 |
SRP £ 36.50 |
| |
x0.75 Supplementary objective |
SL-2 |
SRP £ 36.50 |
| |
x1.5 Supplementary Objective |
SL-3 |
SRP £ 36.50 |
| |
x2 Supplementary Objective |
SL-4 |
SRP £ 36.50 |
| |
SLR Camera Adaptor |
CA-8 |
SRP £ 75.00 |
| |
CCTV Adaptor |
VA-4TV |
SRP £ 79.50 |
