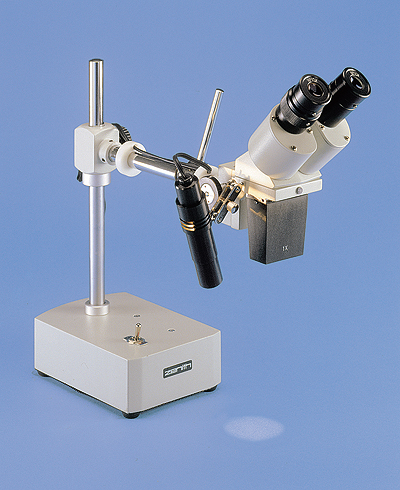

Zenith STL-80 x10/x20 Long Arm Stereoscopic Microscope
A very useful and versatile instrument for use throughout education and industry. Features 12v 10w halogen illumination and two magnifications of x10 and x20 as standard. The long boom arm is adjustable to vary the viewing angle of the stereoscopic head. The heavy microscope base ensures stability. The long working distance of 231mm and a field of view of 20mm make it ideal for operations such as dissection and fine assembly work.
- Magnification x10, x20
- Paired x10 & x20 widefield eyepieces
- Achromatic Objective Pair x1
- Working distance 231mm
- Field of view 20mm
- 230v/12v 10w halogen illumination
- Binocular head inclined 45 degrees for comfortable viewing
- Full interpupillary and dioptric adjustment provided
- Boom arm can be raised on its pillar to accommodate specimens of varying sizes
- Rack and Pinion focusing
- Supplied in polystyrene pack
- Dimensions 390x130x390mm
- Weight Approx 6k
| x10 / x20 Long Arm Stereo Microscope |
STL-80 |
SRP £ 219.00 |
| |
Replacement 12v 10w bulb |
SB-12 |
SRP £ 3.50 |
| |
x15 widefield eyepiece (2 req'd) |
EP-15 |
SRP £ 19.50 |
| |
x0.5 objective pair |
OG-1 |
SRP £ 28.00 |
