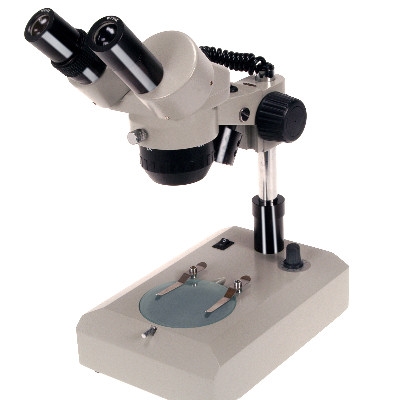

Advanced Stereoscopic Microscope
The ST-400 is a versatile, full-sized stereoscopic microscope of sturdy construction, offering excellent optical performance and reliable mechanical operation. Supplied with two pairs of eyepieces (x10 & x25) and two objective pairs (x2 & x4) on a revolving turret. Four magnifications (x20, x40, x50 & x100) are available with the standard optics supplied, but more magnifications are achievable with the optional eyepieces and supplementary lenses available separately. The microscope features a dual-illumination system comprising halogen top-lighting (incident) and fluorescent substage illumination (transmitted).
- Magnification Range: x20, x40, x50, x100
- Magnifications of x10-x200 possible with optional accessories
- Eyepieces supplied: x10 & x25 Widefield Pairs
- Achromatic Objectives Supplied: x2 & x4 Pairs on revolving turret
- Working Distance: 105mm
- Field of View: 10mm (20x), 8mm (40x), 5mm (50x), 3mm (100x)
- Incident Illumination: 6V 15W Halogen / Transmitted Illumination 230V 5W
- Focusing Mechanism: Rack and Pinion
- Interchangeable Glass and Black & White stage plates
- Approx Weight: 4.5 kilograms / Maximum Height 390mm
| x20/x40/x50/x100 Advanced Stereoscopic Microscope |
ST-400 |
SRP £ 299.00 |
| |
Replacement 6v15w Halogen Bulb |
SB-15 |
SRP £ 6.15 |
| |
Replacement 230v5w Fluorescent Bulb |
SB-5 |
SRP £ 4.95 |
| |
x0.5 Supplementary Objective |
SL-6 |
SRP £ 52.00 |
| |
x2 Supplementary Objective |
SL-7 |
SRP £ 52.00 |
| |
x15 Widefield Eyepiece |
ST-15X |
SRP £ 25.50 |
| |
x20 Widefield Eyepiece |
ST-20X |
SRP £ 25.50 |
