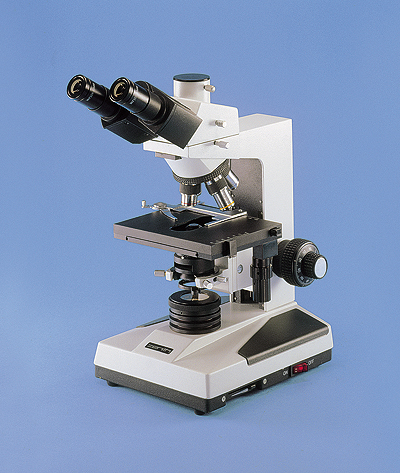

Zenith ML-2000TPH Trinocular Phase Contrast Research Microscope
Professional high performance Phase Contrast microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.
Standard Specification
- Magnification range x100, x400, x1000
- Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
- DIN standard parfocal, parcentred semi-planachromatic positive phase contrast objectives x10, x40R & x100R Oil Immersion (R=retractable)
- Seidentopf Trinocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment
- Phase contrast condenser with Iris diaphragm in centring mount
- Phase centring telescope
- Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop
- Reversed position quadruple Objective Turret for convenient operation
- Large, smooth-action Mechanical Stage with co-axial controls
- Built-in 230v / 6v 20w halogen illumination with rotary brightness control
- Iris Diaphragm fitted to Illuminator Condenser Housing
- Supplied in polystyrene pack with Dust Cover
- Overall dimensions 240x190x390mm
- Weight approx 8kg
| Trinocular Phase Contrast Microscope |
ML-2000TPH |
SRP £ 979.00 |
| |
x5 DIN eyepiece |
WF-5 |
SRP £ 21.99 |
| |
x7 DIN Huyghenian Eyepiece |
H-7 |
SRP £ 14.99 |
| |
x16 DIN widefield eyepiece |
WF-16 |
SRP £ 29.99 |
| |
x10 DIN Widefield Measuring Eyepiece |
ME-10 |
SRP £ 34.99 |
| |
x25 DIN Planachromatic Objective |
PL-25 |
SRP £ 74.99 |
| |
SLR Camera Adaptor |
CA-7 |
SRP £ 69.99 |
| |
CCTV Video Adaptor |
VA-7TV |
SRP £ 79.99 |
| |
Darkfield Condenser |
DF-15 |
SRP £ 149.00 |
| |
Phase contrast set (3xObjs, Condenser & Scope) |
KF-25 |
SRP £ 470.00 |
| |
Polariser & Analyser |
PA-5 |
SRP £ 69.99 |
| |
replacement 6v 20w Halogen bulb |
SB-25 |
SRP £ 5.99 |
| |
Drawing attachment |
DT-6 |
SRP £ 0.00 |
