Zenith Laboratory Microscopes
THE GALLERY
LINKS
MANUALS & PRODUCT REVIEWS
NEW PRODUCTS
PRICE LISTS
SPECIAL OFFERS
ORDER CATALOGUE
Helios Acuter zenith Barr & Stroud

ULTRA-500LM View a larger image of the ULTRA-500LM

ULTRA-500LM
Zenith ULTRA-500LM Monocular Laboratory Microscope

Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and high optical performance. Ideal for use in schools, colleges and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended.

Standard Specification

  • Magnification x40-x1000, x1600* (*x1600 achievable by using optional x16 DIN flatfield eyepieces)
  • x10 DIN standard high eyepoint widefield eyepiece, field 18mm
  • DIN standard Parfocal, parcentred achromatic objectives x4 (0.10), x10 (0.25), 40R (0.65), x100R (1.25) oil immersion (R=retractable)
  • Bright field ABBE condenser (N.A. 1.25) with iris diaphragm and filter carrier on fully focusing Rack and Pinion Substage
  • Build in 230v, 6v 20w halogen illumination with continuously variable rotary brightness control
  • Co-axial coarse and fine focusing with indexed scale and adjustable focus tension
  • Adjustable focus-stop to prevent damage to glass microslides and objective lenses
  • Smooth action x-y mechanical stage 125x130mm with co-axial drop controls and an adjustable spring arm to accommodate slides of different sizes
  • Viewing Head inclined 30 degrees Rotatable 360 degrees
  • Quadruple objective turret on sealed ball bearing race
  • Complete with dust cover
  • Supplied in polystyrene pack
  • Dimensions 215x170x360mm
  • Weight 6.5kg


  Prod. Code
Monocular Laboratory Microscope   ULTRA-500LM   SRP £ 345.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5  SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x20 DIN Achromatic Objective   OMC-27   SRP £ 39.99
   x4 DIN Planachromatic Objective   PL-4   SRP £ 49.99
   x10 DIN Planachromatic Objective   PL-10   SRP £ 69.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   x40R DIN Planachromatic Objective   PL-40   SRP £ 84.99
   x100R(Oil) DIN Semi-Plan. Objective   PL-100   SRP £ 119.00
   Trinocular Attachment   TH-2   SRP £ 169.00
   SLR Camera Adaptor (for use with TH-2)   CA-5   SRP £ 69.99
   Plano concave mirror in mount   BS-2   SRP £ 21.99
   Replacement 6v 20w Halogen Bulb   SB-25   SRP £ 5.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ULTRA-500LA View a larger image of the ULTRA-500LA

ULTRA-500LA

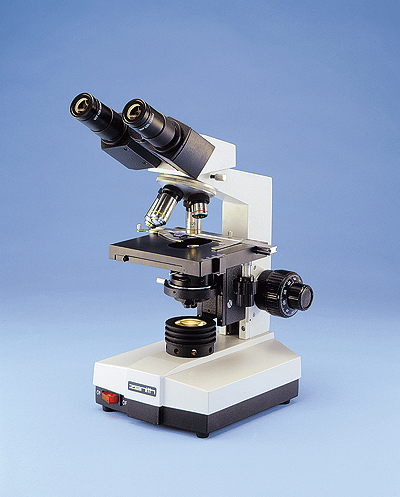

Zenith ULTRA-500LA Binocular Laboratory Microscope

Supplied with Seidentopf Binocular Head

Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and high optical performance. Ideal for use in schools, colleges and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended.

Standard Specification

  • Magnification x40-x1000, (x1600) achievable by using optional x16 DIN flatfield eyepieces
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard Parfocal, parcentred achromatic objectives x4(0.10),x10(0.25),40R(0.65),x100R(1.25) oil immersion (R=retractable)
  • Bright field ABBE condenser (N.A. 1.25) with iris diaphragm and filter carrier on fully focusing Rack and Pinion Substage
  • Build in 230v, 6v 20w halogen illumination with continuously variable rotary brightness control
  • Co-axial coarse and fine focusing with indexed scale and adjustable focus tension
  • Adjustable focus-stop to prevent damage to glass microslides and objective lenses
  • Smooth action x-y mechanical stage 125x130mm with co-axial drop controls and an adjustable spring arm to accommodate slides of different sizes
  • Viewing Head inclined 30 degrees Rotatable 360 degrees with full inter-pupillary adjustment Magnification factor x1
  • Quadruple objective turret on sealed ball bearing race
  • Complete with dust cover
  • Supplied in polystyrene pack
  • Dimensions 215x170x360mm
  • Weight 6.5kg


  Prod. Code
Binocular Laboratory Microscope   ULTRA-500LA   SRP £ 435.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5   SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x20 DIN Achromatic Objective   OMC-27   SRP £ 39.99
   x4 DIN Planachromatic Objective   PL-4   SRP £ 49.99
   x10 DIN Planachromatic Objective   PL-10   SRP £ 69.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   x40R DIN Planachromatic Objective   PL-40   SRP £ 84.99
   x100R(Oil) DIN Semi-Plan. Objective   PL-100   SRP £ 119.00
   Trinocular Attachment   TH-2   SRP £ 169.00
   SLR Camera Adaptor (for use with TH-2)   CA-5   SRP £ 69.99
   Plano concave mirror in mount   BS-2   SRP £ 21.99
   Replacement 6v 20w Halogen Bulb   SB-25   SRP £ 5.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ULTRA-500LT View a larger image of the ULTRA-500LT

ULTRA-500LT

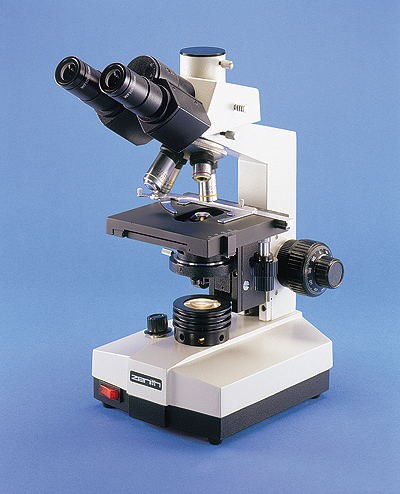

Zenith ULTRA-500LT Trinocular Laboratory Microscope

Supplied with Seidentopf Trinocular Head

Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and high optical performance. Ideal for use in schools, colleges and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended.

Standard Specification

  • Magnification x40-x1000, x1600* (*x1600 achievable by using optional x16 DIN flatfield eyepieces)
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard Parfocal, parcentred achromatic objectives x4 (0.10),x10 (0.25),40R (0.65),x100R (1.25) oil immersion (R=retractable)
  • Bright field ABBE condenser (N.A. 1.25) with iris diaphragm and filter carrier on fully focusing Rack and Pinion Substage
  • Build in 230v, 6v 20w halogen illumination with continuously variable rotary brightness control
  • Co-axial coarse and fine focusing with indexed scale and adjustable focus tension
  • Adjustable focus-stop to prevent damage to glass microslides and objective lenses
  • Smooth action x-y mechanical stage 125x130mm with co-axial drop controls and an adjustable spring arm to accommodate slides of different sizes
  • Supplied in polystyrene pack
  • Dimensions 215x170x360mm
  • Weight 6.5kg


  Prod. Code
Trinocular Laboratory Microscope   ULTRA-500LT   SRP £ 475.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5   SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x20 DIN Achromatic Objective   OMC-27   SRP £ 39.99
   x4 DIN Planachromatic Objective   PL-4   SRP £ 49.99
   x10 DIN Planachromatic Objective   PL-10   SRP £ 69.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   x40R DIN Planachromatic Objective   PL-40   SRP £ 84.99
   x100R(Oil) DIN Semi-Plan. Objective   PL-100   SRP £ 119.00
   Trinocular Attachment   TH-2  SRP £ 169.00
   SLR Camera Adaptor (for use with TH-2)   CA-5   SRP £ 69.99
   Plano concave mirror in mount   BS-2   SRP £ 21.99
   Replacement 6v 20w Halogen Bulb   SB-25   SRP £ 5.99

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MICROLAB-2000B View a larger image of the MICROLAB-2000B

MICROLAB-2000B

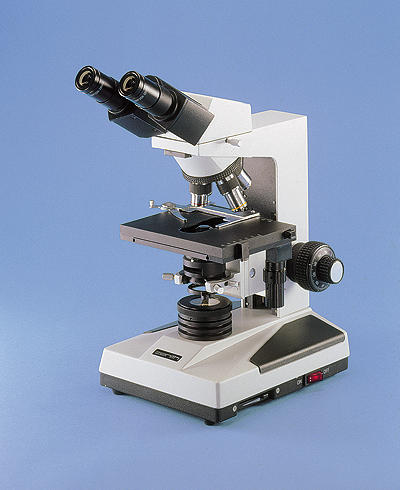

Zenith ML-2000B Binocular Laboratory Research Microscope

Professional high performance compound laboratory microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

Standard Specification

  • Magnification x40, x100, x400, x1000, x1600* (*x1600 magnification achievable by using optional x16 DIN flatfield eyepieces)
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard parfocal, parcentred planachromatic objectives x4, x10, x40R & x100R Oil Immersion (R=retractable)
  • Seidentopf Binocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment
  • Brightfield ABBE Condenser (N.A. 1.25) with iris diaphragm in centring mount
  • Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop
  • Reversed position quadruple Objective Turret for convenient operation
  • Large, smooth-action Mechanical Stage with co-axial controls
  • Built-in 230v / 6v 20w halogen illumination with rotary brightness control
  • Iris Diaphragm fitted to Illuminator Condenser Housing
  • Supplied in polystyrene pack with Dust Cover
  • Overall dimensions 240x190x390mm
  • Weight approx 8kg


  Prod. Code
Binocular Research Microscope   ML-2000B   SRP £ 649.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5   SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   Darkfield Condenser   DF-15   SRP £ 149.00
   Phase contrast set (3xObjs, Condenser & Scope)   KF-25   SRP £ 470.00
   Polariser & Analyser   PA-5   SRP £ 69.99
   replacement 6v 20w Halogen bulb   SB-25   SRP £ 5.99
   Drawing attachment   DT-6  SRP £ 0.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MICROLAB-2000T View a larger image of the MICROLAB-2000T

MICROLAB-2000T

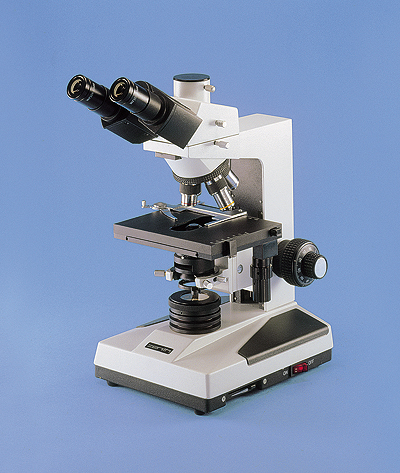

Zenith ML-2000T Trinocular Laboratory Research Microscope

Professional high performance compound laboratory microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

Standard Specification

  • Magnification x40, x100, x400, x1000, x1600* (*x1600 magnification achievable by using optional x16 DIN flatfield eyepieces)
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard parfocal, parcentred planachromatic objectives x4, x10, x40R & x100R Oil Immersion (R=retractable)
  • Seidentopf Trinocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment
  • Brightfield ABBE Condenser (N.A. 1.25) with iris diaphragm in centring mount
  • Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop
  • Reversed position quadruple Objective Turret for convenient operation
  • Large, smooth-action Mechanical Stage with co-axial controls
  • Built-in 230v / 6v 20w halogen illumination with rotary brightness control
  • Iris Diaphragm fitted to Illuminator Condenser Housing
  • Supplied in polystyrene pack with Dust Cover
  • Overall dimensions 240x190x390mm
  • Weight approx 8kg


  Prod. Code
Trinocular Research Microscope   ML-2000T   SRP £ 699.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5   SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   SLR Camera Adaptor (for trinocular models only)   CA-7   SRP £ 69.99
   CCTV Video Adaptor (for trinocular models only)   VA-7TV   SRP £ 79.99
   Darkfield Condenser   DF-15   SRP £ 149.00
   Phase contrast set (3xObjs, Condenser & Scope)   KF-25   SRP £ 470.00
   Polariser & Analyser   PA-5   SRP £ 69.99
   replacement 6v 20w Halogen bulb   SB-25   SRP £ 5.99
   Drawing attachment   DT-6  SRP £ 0.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MICROLAB-2000TPH View a larger image of the MICROLAB-2000TPH

MICROLAB-2000TPH
Zenith ML-2000TPH Trinocular Phase Contrast Research Microscope

Professional high performance Phase Contrast microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

Standard Specification

  • Magnification range x100, x400, x1000
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard parfocal, parcentred semi-planachromatic positive phase contrast objectives x10, x40R & x100R Oil Immersion (R=retractable)
  • Seidentopf Trinocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment
  • Phase contrast condenser with Iris diaphragm in centring mount
  • Phase centring telescope
  • Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop
  • Reversed position quadruple Objective Turret for convenient operation
  • Large, smooth-action Mechanical Stage with co-axial controls
  • Built-in 230v / 6v 20w halogen illumination with rotary brightness control
  • Iris Diaphragm fitted to Illuminator Condenser Housing
  • Supplied in polystyrene pack with Dust Cover
  • Overall dimensions 240x190x390mm
  • Weight approx 8kg


  Prod. Code
Trinocular Phase Contrast Microscope   ML-2000TPH   SRP £ 979.00

View full product info and print page

Email page to a friend



Accessories Prod. Code Price
   x5 DIN eyepiece   WF-5   SRP £ 21.99
   x7 DIN Huyghenian Eyepiece   H-7   SRP £ 14.99
   x16 DIN widefield eyepiece   WF-16   SRP £ 29.99
   x10 DIN Widefield Measuring Eyepiece   ME-10   SRP £ 34.99
   x25 DIN Planachromatic Objective   PL-25   SRP £ 74.99
   SLR Camera Adaptor   CA-7  SRP £ 69.99
   CCTV Video Adaptor   VA-7TV   SRP £ 79.99
   Darkfield Condenser   DF-15   SRP £ 149.00
   Phase contrast set (3xObjs, Condenser & Scope)   KF-25   SRP £ 470.00
   Polariser & Analyser   PA-5   SRP £ 69.99
   replacement 6v 20w Halogen bulb   SB-25   SRP £ 5.99
   Drawing attachment   DT-6  SRP £ 0.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MICROLAB-1000 DIGITAL View a larger image of the MICROLAB-1000 DIGITAL
MICROLAB-1000 DIGITAL View a larger image of the MICROLAB-1000 DIGITAL

MICROLAB-1000 DIGITAL
BINOCULAR LABORATORY MICROSCOPE

DISPLAY AND CAPTURE LIVE IMAGES DIRECTLY TO YOUR PC!!

Full-sized laboratory standard instrument incorporating a 1.3mp (1280x1024 pixels) built-in CMOS digital camera. Display and capture live images directly to your PC with ease, via a USB 2.0 cable using user-friendly ScopeImagePlus application software.
The camera can be connected and disconnected freely, and when the camera is not in use, the instrument operates like a conventional microscope.
Ideal for use in schools, colleges and professional laboratories over a wide range biological, medical, veterinary, bacteriological and agricultural applications

Standard Specifiaction:
  • Magnification x40-x1000 (x1600 achievable by using optional x16 eyepieces)
  • Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm
  • DIN standard, parfocal, parcentred objectives x4 (0.10), x10 (0.25), x40R (0.65), X100R (1.25) Oil
  • Built-in 230v, 6v 20w halogen illumination with variable brightness control
  • Bright field ABBE condenser (N.A. 1.25) with iris diaphragm and filter carrier
  • Fully focusing rack & pinion substage
  • Co-axial coarse and fine focusing with indexed scale and adjustable focus-tension
  • Adjustable focus-stop
  • Quadruple nosepiece
  • Smooth x-y mechanical stage with co-axial drop-down controls.
  • Windows 2000/XP/VISTA/7 compatible software
  • USB 2.0 Output, cable supplied
  • Dust cover
  • Dimensions 215x170x360mm
  • Weight 6.5kg


  Prod. Code
MICROLAB-1000 DIGITAL   60031   SRP £ 529.00

View full product info and print page

Email page to a friend


<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UB-100i   View a larger image of the UB-100i

UB-100i
Zenith UB-100i Advanced Binocular Laboratory Microscope

Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and excellent optical performance.
Equipped with infinity-corrected achromatic optical system. Chromatic aberrations and field curvature of field are both ideally corrected over the field of view. Infinity objectives, with higher numerical apertures, produce crisp and clear images..
Ideal for use in colleges, universities and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended.
Standard Specification
  • Magnification range x40, x100, x400 & x1000
  • Paired x10 DIN standard high eyepoint, widefield Plan eyepieces. Field 18mm, eyepoint 21mm
  • Infinity achromatic objectives DIN standard Parfocal, parcentred x4(0.13),x10(0.30),40R(0.70),x100R(1.25) oil immersion (R=retractable)
  • Bright field ABBE condenser (N.A. 1.25) with colour-coded iris diaphragm scale and filter carrier on fully focusing Substage
  • Build in 230v, 6v 20w halogen illumination with continuously variable rotary  brightness control
  • Co-axial coarse and fine focusing with indexed scale and adjustable focus tension
  • Smooth action x-y mechanical stage 142x135mm with co-axial drop controls and an adjustable spring arm to accommodate slides of different sizes
  • Seidentopf binocular head, inclined 30 degrees Rotatable 360 degrees with full inter-pupillary adjustment (52-75mm). Magnification factor x1
  • Reversed position quadruple objective turret on sealed ball bearing race
  • Complete with dust cover
  • Supplied in polystyrene pack
  • Dimensions 270x190x340mm
  • Weight 6.5kg


  Prod. Code
UB-100i   70051   SRP £ 499.00

View full product info and print page

Email page to a friend


<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The prices listed on this website are U.K. suggested retail prices (SRP) including VAT for reference purposes only
and that prices may vary from dealer to dealer. Please contact your nearest stockist for firm pricing information.
As we are purely a distributor, we regret we are unable to sell directly to the public.
Specifications subject to variation due to later production changes. E&OE.

Optical Vision Ltd
Unit 3, Woolpit Business Park, Woolpit, Bury St. Edmunds, Suffolk IP30 9UP, England
Email: info@opticalvision.co.uk


©Optical Vision Ltd 2007. No part of this website may be reproduced without the written permission of OVL




website designed by mi
