Dobsonian Telescopes
View stockists
THE GALLERY
LINKS
MANUALS
PRODUCT NEWS
PRICE LISTS
SPECIAL OFFERS
ORDER CATALOGUE
”I have used a great number of telescopes; some are good, some mediocre and some bad. To me the Sky-Watcher range of instruments are very good indeed, and suited to amateurs of all kinds – and they are not priced out of the market! Excellent value.
Use them and enjoy them.“
Sir Patrick Moore CBE FRS
Note: The Sky-Watcher telescope models and mountings that have been tested, endorsed and recommended by Sir Patrick Moore are labelled accordingly in their respective sections on this website.
Sir Patrick Moore CBE FRS

FANTASTIC ACCESSORY SET OFFER!!

Buy ANY Sky-Watcher or TAL telescope from ANY UK dealer & buy this superb
Sky-Watcher Eyepiece, Filter, Night Vision Torch & User Guide Set for just £69.00 (SRP £149.00) directly from OVL!!


Kit Comprises: 2mm, 5mm, 15mm & 20mm Long Eye Relief Eyepieces, Four Threaded Light Filters (Amber, Blue, Neutral Grey & Moon Filter) Dual - Beam LED Night Vision Torch, Astronomical Telescope User Guide, in lockable, foam-padded Aluminium Case

Terms of Offer
Just send a photocopy of your receipt  with a cheque (payable to OVL) and covering note to us at the address below.  Order must be placed within FOUR MONTHS of telescope purchase. Please provide a daytime telephone number and an address, for guaranteed acceptance of delivery, between 9am-5pm Mon-Fri as the goods will be delivered by carrier. FREE delivery to any UK address!!

Offer commences 25th June 2007.
Telescope purchased 25/02/07 onwards qualify for offer.

Post to: Accessory Set Offer, Optical Vision Ltd, Unit 3 Woolpit Business Park, Woolpit, Bury St.Edmunds, Suffolk, IP30 9UP

(Please note: We reserve the right to discontinue this offer at any time without prior notice)



These instruments offer an incredible aperture-to-price ratio. The Dobsonian mount, popularized by John Dobson in the late 1970’s, is a very simple but effective method of mounting a Newtonian Reflector, based on the alt-azimuth principle. Fast and easy to set up, the Dobsonian mount consists of a box-type mounting which allows the telescope to pivot in altitude, while the box itself is rotated on a base in azimuth. The secret of the design is to correctly balance the optical tube and to use frictional materials, which allow it to move easily when nudged but to stay in position when not. The mount is designed to be driven by hand as opposed to slow motion controls.
Tube material: Aluminium.

NEW!!
SKYLINER FlexTubeTM DOBSONIANS

Sky-Watcher are proud to introduce a new range of truss-tube dobsonian models. The new FlexTubeTM Dobsonians all feature retactable OTA’s, making them easy to transport and store, offering the ultimate flexibility for owning an otherwise large telescope. They all feature 2-part telescope tubes attached with 3-arm supports. When in use the tube is fully extended and each arm’s axis is clamped to ensure a rigid optical system. After use, the clamps can be loosened and the tube retracted into a convenient compact size. Owning a large telescope has never been so easy!!

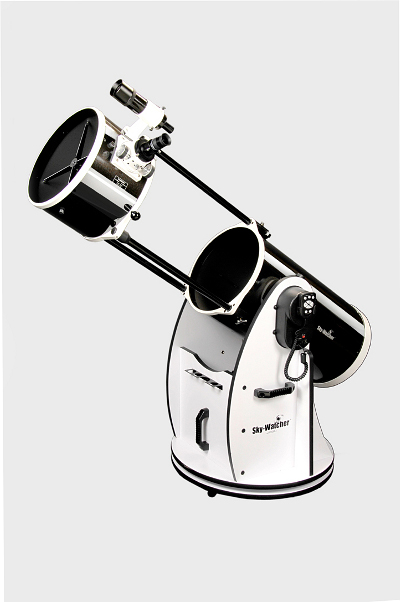

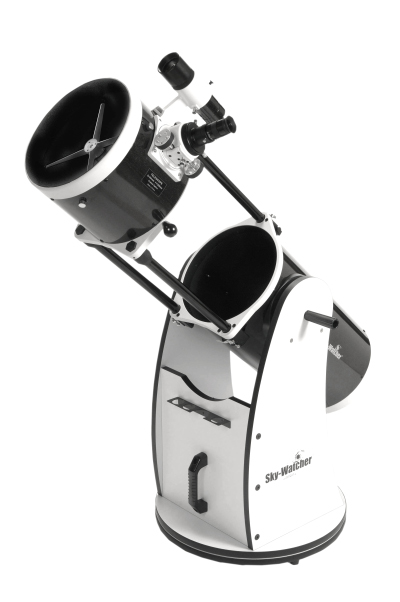

View a larger image of the Skyliner-200P FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>
View a larger image of the Skyliner-200P FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>

Skyliner-200P FlexTubeTM
200mm (8") F/1200 Parabolic Truss-Tube Dobsonian Telescope

  • Magnifications (with Eyepieces supplied): x48 & x120
  • Highest Practical Power (Potential): x400
  • Diameter of Primary Mirror: 200mm
  • Telescope Focal Length: 1200mm (f/6)
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Dual-Fit 1.25"/2" Crayford Focuser
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • 3-Point tube locking system
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 77% more Light Gathering than 150mm


  Prod. Code
Skyliner-200P FlexTubeTM   156   SRP £ 349.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View a larger image of the Skyliner-250PX FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>
View a larger image of the Skyliner-250PX FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>

Skyliner-250PX FlexTubeTM
254mm (10") F/1200 Parabolic Truss-Tube Dobsonian Telescope

  • Magnifications (with Eyepieces supplied): x48 & x120
  • Highest Practical Power (Potential): x500
  • Diameter of Primary Mirror: 254mm
  • Telescope Focal Length: 1200mm (f/5)
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Dual-Fit 1.25"/2" Crayford Focuser
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • 3-Point tube locking system
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 56% more Light Gathering than 200mm


  Prod. Code
Skyliner-250PX FlexTubeTM   157   SRP £ 479.00

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

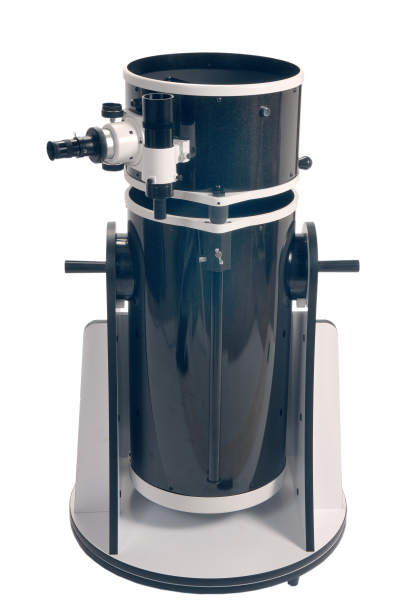

View a larger image of the Skyliner-300P FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>
View a larger image of the Skyliner-300P FlexTube<SUP><FONT SIZE=2-1”>TM</FONT></SUP>

Skyliner-300P FlexTubeTM
305mm (12") F/1500 Parabolic Truss-Tube Dobsonian Telescope

  • Magnifications (with Eyepieces supplied): x60 & x150
  • Highest Practical Power (Potential): x600
  • Diameter of Primary Mirror: 305mm
  • Telescope Focal Length: 1500mm (f/5)
  • Eyepieces Supplied (1.25"): SP10mm & 25mm
  • Dual-Fit 1.25"/2" Crayford Focuser
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • Telescope Tube Length 144cm (Extended), 92.5cm (Retracted)
  • 3-Point tube locking system
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 44% more Light Gathering than 250mm

"A precision instrument that breaks the stereotypical Dobsonian mold to deliver stunning planetary and deep-sky performance in a compact, readily transportable package."
"The upper section of the FlexTube containing the secondary mirror assembly and Crayford focuser extends with effortless precision on three rods that are easily locked into position at their greatest extent. Despite repeatedly collapsing and extending the instrument in the course of an prolonged observing session, the FlexTube's optics remained in perfect alignment."
"It would be easy to pigeonhole the 305mm FlexTube as an innovative, transportable Dobsonian for the deep-sky enthusiast, but it's much more than that. Its stunning planetary prowess will have many observers redefining what short focal ratio Newtonians are capable of."
"Having used a wide range of Sky-Watcher Newtonians over the years, I've often expressed my pleasure at the the consistency and precision with which the mirrors are polished and figured. In my Astronomy Now review of this instrument's predecessor, the Skyliner-300P, I wrote of its enviable optical performance for the price. I didn't think the 305mm FlexTube would surpass it, but it does."
"Saturn is often described as the jewel of the Solar System, but to see it in all its 24-carat splendour you need a 12-inch FlexTube. In recent memory I haven't seen such a sharp and richly rendered image of the ringed planet as that delivered by the 305mm FlexTube on the night of April 8th, 2008."
"I was able to use the 305mm FlexTube on a wide variety of celestial objects under what passed for fine observing conditions from my heavily light-polluted suburban locale. Messier 3, the stunning globular cluster in Canes Venatici, was resolved into a ball of innumerable stars, some held with direct vision right across the core. Messier 82, the starburst galaxy in Ursa Major, easily revealed mottled dusty filaments across its nucleus. Edge-on galaxy NGC 4565 in Coma Berenices showed the dust lane along its slender form. And so the list went on."
"Mars, just 6.6 arcseconds in diameter, revealed its 90% gibbous phase with ease. But what surprised me was plainly identifying the Syrtis Major near the planet's meridian at such a distance from Earth."
Ade Ashford, www.scopetest.com



Related Manuals



  Prod. Code
Skyliner-300P FlexTubeTM   158   SRP £ 649.00

Gallery Images
Click on images for larger view of photos taken using this telescope model

Moon
Photo courtesy of: Ade Ashford

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View a larger image of the SKYLINER-150P
View a larger image of the SKYLINER-150P

SKYLINER-150P
153mm (6") f/1200 Parabolic Dobsonian Telescope

  • Magnifications (with eyepieces supplied): x48 & x120
  • Highest Practical Power (Potential): x306
  • Diameter of Primary Mirror: 153mm
  • Telescope Focal Length: 1200mm (f/8)
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 6x30 Finderscope
  • Direct SLR Camera Connection
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 73% more Light Gathering than 114mm


  Prod. Code
SKYLINER-150P   716   SRP £ 179.00
Sky-Watcher Dobsonians feature a unique patented Tensioner/Carrying handle. By lifting the handles together, you can easily carry the whole unit in an upright position with the help of a friend.


<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View a larger image of the SKYLINER-200P
View a larger image of the SKYLINER-200P

SKYLINER-200P
203mm (8") f/1200 Parabolic Dobsonian Telescope

  • Magnifications (with eyepieces supplied): x48 & x120
  • Highest Practical Power (Potential): x406
  • Diameter of Primary Mirror: 203mm
  • Telescope Focal Length: 1200mm (f/5.91)
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Dual-Fit 1.25"/2" Focuser
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 77% more Light Gathering than 150mm

Highly commended

"“The Skyliner 200’s flat-packed base is very easy to build and set up, and comes with excellent instructions….The optics were sharp across 80% of the 1 degree field of view….We were very pleased with the appearance of al the test objects – we even managed to find the Crab Nebula, M81 and M82 in near-full Moonlight, whereas the other scopes were struggling. Under darker skies the Double Cluster had that ‘Wow’ factor when it was centred using the 25mm eyepiece, as did M35. The Pleiades (M45) was just a bit too large to fit in the field of view, but the main central stars looked stunning….Turning to Saturn, the view really took our breath away: we saw five moons, a clear-cut Cassini Division and a colour difference between the A and B rings. Not only that, but Saturn also displayed a prominent belt – with this scope planetary detail is certainly not compromised….Fans of deep-sky observing would certainly find the Skyliner satisfying….The Skyliner was a joy to use.”"
BBC SKY AT NIGHT MAGAZINE



  Prod. Code
SKYLINER-200P   717   SRP £ 279.00

Gallery Images
Click on images for larger view of photos taken using this telescope model

The Moon and Saturn
Photo courtesy of: Paul Greenhalgh

<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View a larger image of the SKYLINER-250PX
View a larger image of the SKYLINER-250PX

SKYLINER-250PX
254mm (10") f/1200 Parabolic Dobsonian Telescope

  • Magnifications (with Eyepieces supplied): x48 & x120
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Highest Practical Power (Potential): x508
  • Diameter of Primary Mirror: 254mm
  • Telescope Focal Length: 1200mm (f/5)
  • Dual-Fit 1.25"/2" Focuser
  • Parabolic Primary Mirror (Pyrex Glass)
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 56% more Light Gathering than 200mm


  Prod. Code
SKYLINER-250PX   668   SRP £ 399.00
ADVANCED FEATURES
All Sky-Watcher Dobsonian models feature 0.5mm Ultra-Thin Secondary Mirror Supports to reduce diffraction spikes & light loss, and high quality Paraboloidal primary mirrors to eliminate spherical aberration.

PYREX MIRRORS
The SKYLINER 250PX models feature Paraboloidal primary mirrors made of Low Thermal Expansion Pyrex Glass resulting in substantially shorter cooling times.


<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View a larger image of the SKYLINER-300P

SKYLINER-300P
300mm (12") f/1500 Parabolic Dobsonian Telescope

  • Magnifications (with Eyepieces supplied): x60 & x150
  • Highest Practical Power (Potential): x600
  • Diameter of Primary Mirror: 300mm
  • Telescope Focal Length: 1500mm (f/5)
  • Eyepieces Supplied (1.25"): 10mm & 25mm
  • Dual-Fit 1.25"/2" Focuser
  • Parabolic Primary Mirror
  • 0.5mm Ultra-Thin Secondary Mirror Supports
  • 9x50 Finderscope
  • Direct SLR Camera Connection
  • Wooden Alt-Azimuth Mount with Accessory Tray
  • 44% more Light Gathering than 250mm

Astronmony now HOT product

“The Sky-Watcher Skyliner range offers some of the best-equipped instruments of this type….Cools down surprisingly rapidly for such a large instrument….Jupiter displayed a wealth of detail despite its low altitude….The Moon surface was replete with sharply defined rille, craterlet and mountain detail….The Skyliner-300P really showed its mettle on the deep-sky. The Hercules globular cluster M13 was a magnificent sight….At 300x the scope clearly showed even diffraction rings around all four components of Epsilon Lyrae….This instrument offers a staggering specification for the money with an optical performance that would be the envy of many a manufacturer. With equipment like this available at such reasonable cost, observers truly have never had it so good.”
ASTRONOMY NOW MAGAZINE



Related Manuals



  Prod. Code
SKYLINER-300P   953   SRP £ 549.00
ADVANCED FEATURES
All Sky-Watcher Dobsonian models feature 0.5mm Ultra-Thin Secondary Mirror Supports to reduce diffraction spikes & light loss, and high quality Paraboloidal primary mirrors to eliminate spherical aberration.

PARABOLIC PRIMARY MIRRORS
All Sky-Watcher f/4 & f/5 Newtonian Reflectors feature High Quality Parabolic Primary Mirrors to eliminate spherical aberrations. The mirrors are parabolized to bring all the light rays to the same focal point to produce sharp, contrasty images, which are full of detail.


<BACK TO TOP OF PAGE>
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The prices listed on this website are U.K. suggested retail prices (SRP) including VAT for reference purposes only
and that prices may vary from dealer to dealer. Please contact your nearest stockist for firm pricing information.
As we are purely a distributor, we regret we are unable to sell directly to the public.
Specifications subject to variation due to later production changes. E&OE.
