SKY-WATCHER 10MM
ERECTING EYEPIECE


Cheshire Collimating Eyepiece


Sky-Watcher 12.5mm Illuminated Plossl Eyepiece


Sky-Watcher Super-MA Series Eyepieces


The modified achromat series of eyepieces offer a good standard of performance in a very affordable package.  Designed for telescopes with mid-range to long f/ratio, these oculars have features usually found only in more expensive designs.  These Super Eyepieces incorporate a fold-down rubber eye-shield, fully coated optics and outstanding field correction.

• Design: Modified Achromat, fully coated
• Focal lengths: 25mm, 10mm & 3.6mm
• Eyepiece Barrels: 1.25"/31.7mm Format
• Apparent Field of view: 52 degrees (20mm and 10mm), 50 degrees (25mm and 4mm), 40 degrees (3.6mm)

Sky-Watcher Long Eye Relief (LER) Eyepieces
Multi-Coated, Eye Relief: 20mm, Apparent Field: 45º (2mm & 5mm), 50º (9mm, 15mm, 20mm & 25mm).

These multi-coated eyepieces provide a generous 20mm eye relief, and all focal lengths including the 2mm model feature particularly wide diameter eye lenses for maximum viewing comfort. These eyepieces are especially valuable for spectacle wearers, as the long eye relief allows the entire field to be viewed whilst spectacles are being worn.

Twist-up eyecups are provided for added comfort and to keep out extraneous light.

Sky-Watcher 'SP-Series' Super Plossl Eyepieces
Super-Plossl Eyepieces (Multi-Coated, Field 52º)

Sky-Watcher Ultrawide Eyepieces
Multi-Coated, 66º Apparent Field, Eye Relief 20mm (18mm Eye Relief), 15mm (13mm Eye Relief), 9mm (15mm Eye Relief), 6mm (14.8mm Eye Relief)

Sky-Watcher 7-21mm Zoom Eyepiece
(1.25'/31.7mm Format)


Sky-Watcher 8-24mm Zoom Eyepiece (1.25'/31.7mm Format)


"The multi-coatings worked particularly well during our field of view tests...one of only two of the zooms on test that didn't have any internal reflections on bright objects...Rotating the barrel to change magnification is quite smooth... At the 24mm setting the field of view was sharp across 80 per cent of the view...Cranking up the magnification to 8mm, we split the double star Albireo well...Jupiter had good detail as did the Moon at all magnifications...This eyepiece did a great job on a wide range of subjects"
BBC Sky At Night Magazine

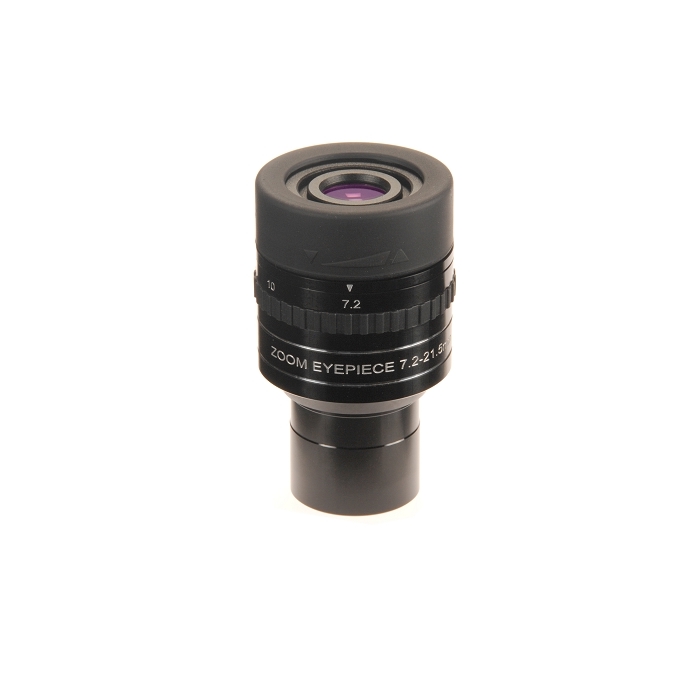

HyperFlex-7E 7.2mm-21.5mm High-Performance Zoom Eyepiece (1.25"/31.7mm)
The Flexibility of a Set of Quality Eyepieces, All-In-One!!

A high-performance zoom eyepiece of top quality construction, providing a flat field of view and crisp, clear distortion-free images. Features a continuous focal length of 7.2mm to 21.5mm and a corresponding apparent field of view of 60°-40°. For convenience, focal length positions of 7.2, 10, 13.5 & 21.5mm are engraved on the eyepiece barrel. The zoom is super-smooth to operate and a pleasure to use. Eye relief 15mm.

Constructed with 7 lens elements in 4 separate groups. This exotic eyepiece model features a generous sized eye-lens element and soft twist-up rubber eyecup for comfortable viewing. Fully broadband multi-coated, features blackened lens edges, internal baffling and is parfocal.  Beautifully finished in high-gloss anodized aluminium with knurled rubber grips. Threaded to accept standard 1.25” filters. Weight approx 190g.

HyperFlex-8E 7.5mm-22.5mm High-Performance Zoom Eyepiece (1.25
The Flexibility of a Set of Quality Eyepieces, All-In-One!!

A high-performance zoom eyepiece of top quality construction, providing an extra flat field of view and crisp, clear distortion-free images. Features a continuous focal length of 7.5mm to 22.5mm and a corresponding wide apparent field of view of 66°-42°. For convenience, focal length positions of 7.5, 12, 17 & 22.5mm are engraved on the eyepiece barrel. The zoom is super-smooth to operate and a pleasure to use. The generous eye relief varies from 18mm-19.5mm.

Constructed with 8 lens elements in 5 separate groups. This exotic eyepiece model features a large eye-lens element and soft twist-up rubber eyecup for comfortable viewing. Fully broadband multi-coated, features blackened lens edges, internal baffling and is parfocal.  Beautifully finished in high-gloss anodized aluminium with knurled rubber grips. Threaded to accept standard 1.25" filters. Weight approx 250g.

ExtraFlat^TM Wide-Angle Eyepieces (1.25")
Edge-to-edge distortion free images

Nirvana^TM UWA-82° 4mm/7mm/16mm High-Performance Eyepieces (1.25"/31.7mm)
Experience Ultrawide Eyepiece 'Heaven'!!

SKY-WATCHER LER EYEPIECE
& FILTER SET


Sky-Watcher 2" Kellner Eyepieces
Multi-Coated, Field 56º (28mm & 35mm), Field 50º (42mm).

Super Wide Angle (SWA) 1.25"/2" Eyepieces
Multi Coated 70° Apparent Field

These high quality, 8-Element, multi-format eyepieces feature a clever design allowing them to be readily used in either 1.25" or 2" eyepiece tube barrels.  Threaded for 1.25" filters.

(1.25"/31.7mm & 2"/50.8mm Multi-Format Design)

Ultra Wide Angle (UWA) 2" Eyepieces
Multi Coated, 80° Apparent Field

High quality 2" eyepieces featuring an impressive 80 degree apparent field.  The 15 & 20mm models are constructed with 7-Elements and the 30mm with 5-Elements.  Threaded for 2" Filters.

(all standard 2"/50.8mm format)

15mm UWA not illustrated

PanaView^TM 2" Eyepieces


Aero^TM 2" ED Eyepieces


Nirvana^TN UWA-82° 28mm High-Performance Eyepiece (2"/50.8mm)
Experience Ultrawide Eyepiece 'Heaven'!!
