0.77x REDUCER/FLATTENER FOR ESPRIT-150ED TRIPLET

0.77x REDUCER/FLATTENER FOR ESPRIT-150ED TRIPLET
  Zoom
 0.77x REDUCER/FLATTENER FOR ESPRIT-150ED TRIPLET0.77x REDUCER/FLATTENER FOR ESPRIT-150ED TRIPLET
SRP: £299.00

Product Code:  20096
Brand:  Sky-Watcher



Sky-Watcher

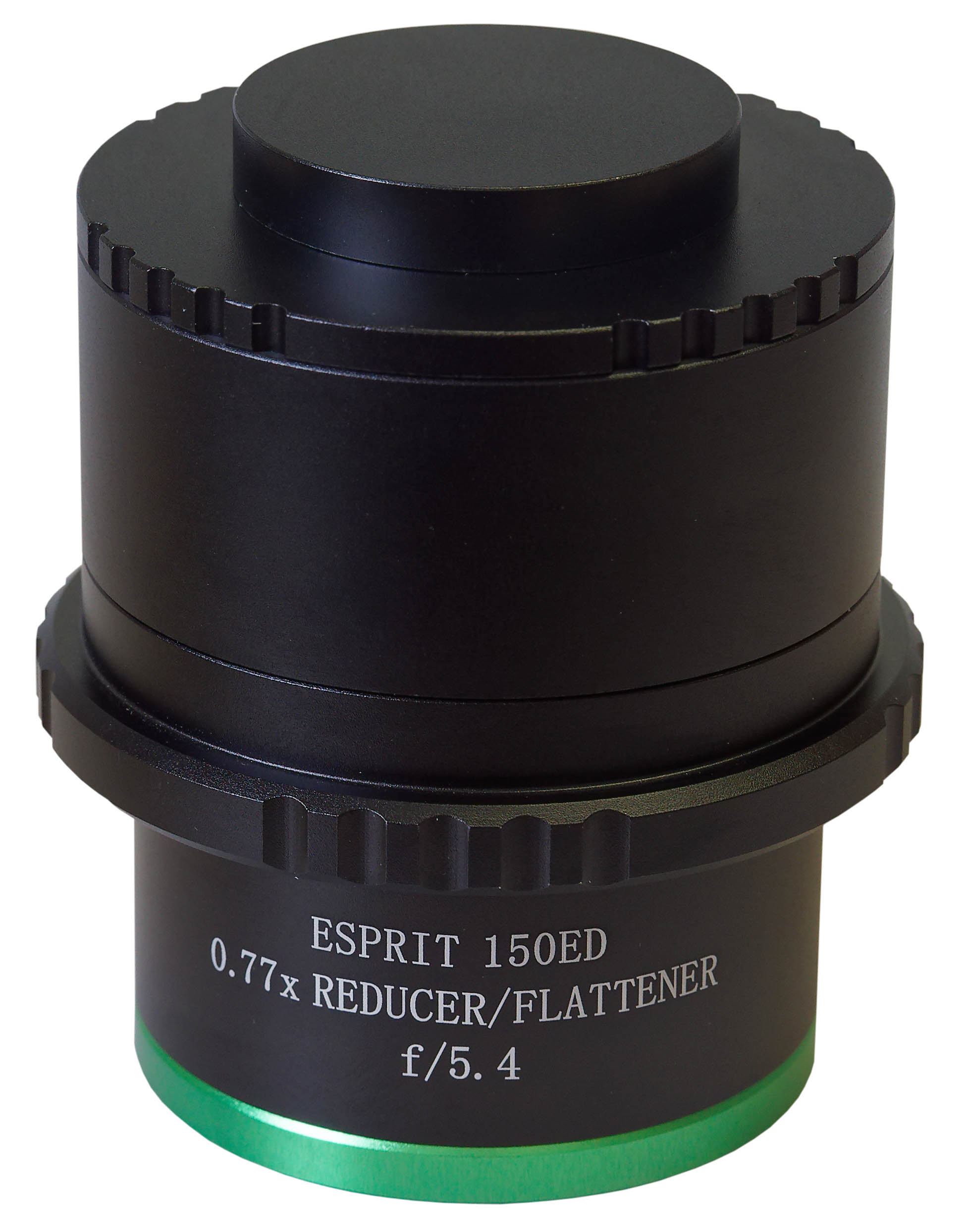

Designed specifically for the Sky-Watcher Esprit-150 ED Apo Refractor, the new three-lens Focal Reducer/Flattener has a reduction factor of 0.77x. It comes with a standard adaptor with M48 thread edge and 55mm back focus for use with Sky-Watcher's M48 Canon EOS (code 20237) and Nikon (code 20238) adaptor rings. After removing the adaptor, an M71x1 internal thread with maximum 75mm back focus is available for self-made adaptor solutions. The Reducer/Flattener produces a fully illuminated and corrected image circle of 36mm diameter and is therefore perfectly suitable for image formats up to APS-C but can also be used for full format.

  • 0.77x Focal Reducer / Field Flattener
  • Effectively reduces Focal Ratio of Esprit-150ED to f/5.4
  • Three-Lens Fully Multi-Coated Optical Design
  • Image Circle 36mm
  • Full Frame Compatible
  • 2-Inch Filter Compatible
  • 75mm Back Focus or 55mm with supplied adaptor
  • M48 x 0.75 Adaptor
  • Weight 910g (with end caps)
